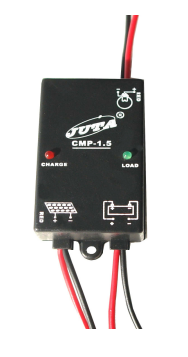

This solar charge controller designed for solar lawn lights, solar garden lights, Mini solar street light, Mini solar advertising light boxes and so on. The enclosure for the controller is compact and sealed with silicon. It also has Temperature Compensation during charging and can be used with a 12 V nominal solar PV panel with a maximum output of 3A (recommended for 30W solar PV or less)
There are six output wires, two for the battery, two for the solar panel and two for a remote load. All six output leads are connected to a terminal block for easy connection.
Specifications:
Rated Voltage: 12V/6V
Rated Charge Current: 1A/3A
Rated Load Current: 1A/3A
Charge-stop Voltage: 14.4V/7.2V
Supply-stop Voltage: 10.5V/5.3V
Supply-resume Voltage: 12.0V/6.0V
Light Control Mode: Visibility 20M
Working Temp: -10- +40 Degree C
Coefficient of Stop Voltage and Temp: -3mV/Degree C/cell
Relative Humidity: ≤ 90%
Dimension: 55× 36× 20mm
Weight: 33G
