Price: $1,250.00
SKU: WGO10045A
Brand: Ryse Energy
    Boost Performance?:

    Update price

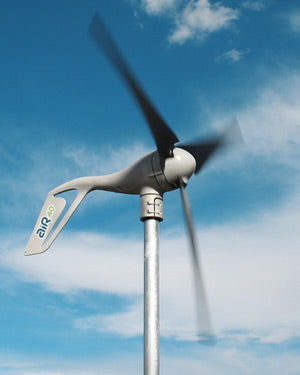

    Air 40 Land Small Wind Turbine 12V is the AIR Breeze Land Turbine version and the premier small wind turbine for land-based applications.

    Air 40 Small Turbine is ideal for pairing with solar to offset seasonal variation, delivering constant energy.

     If you are interested in boosting the Air 40 Small Wind Turbine performance, then you need to select the Blue Blades option from the radio buttons above.

    The Blue Blades are hand laid carbon fiber blades that are balanced into a set providing maximum energy harvest from the wind while operating with minimum vibration and very low noise.



    Air 40 12V Small Turbine Specifications:

    Energy Approx. 40 kWh/mo at 5.8 m/s (13 mph)
    Swept Area 1.07 m2 (11.5 ft2)
    Rotor Diameter 1.17 m (46 in)
    Weight 5.9 kg (13 lb)
    Shipping Dimensions 686 x 318 x 229 mm (27 x 12.5 x 9 in) 7.7 kg (17 lb)
    Startup Wind Speed 3.1 m/s (7 mph)
    Voltage 12, 24 and 48 VDC
    Turbine Controller Mircoprocessor-based smart controller
    Body Permanent mold cast aluminum
    Blades (3) Injection-molded composite
    Alternator Permanent magnet brushless
    Overspeed Protection Electronic torque control
    Survival Wind Speed 49.2 m/s (110 mph)
    Mount 1.5 in schedule 40 pipe 48 mm (1.9 in) outer diameter
    Wind Speed Operating Range 3.1-22 m/s (7-49 mph)
    Optimum Wind Speed Range 4.5-22 m/s (10-49 mph)




    AIR 40 Wind Generators Parts
    AIR 40 Parts Full selection of AIR 40 Wind Turbine Replacement Parts



    Air 40 Small Land Wind Turbine Documents:
    PDF Air 40 12V Manual
    PDF Air 40 12V Warranty Card
    PDF

    Air 40 Spec sheet
