The CruzPro CH55 displays the meters of loose chain in meters, feet or fathoms. It can display the battery voltage at the winch even while it is running.
All calibrations are entered in the production phase, but can be modified according to your specific needs. All information is automatically saved in non-volatile memory.
The CH55 absorbs only 0.017 amps and 5 levels of backlighting (including OFF) are selectable for correct viewing. 12/24 Vdc power supply.
Technical features
- Power supply voltage: 6.5 - 33 Vdc
- Display: 4 digits, 5 backlight levels
- Absorption: 0.018 amps nominal
- Operating temperature: 0 to 50 ° C (32 to 122 ° F)
- Functions: loose chain meters; Winch battery voltage
- Embedding hole: 55 mm
Monitor the length of chain lowered

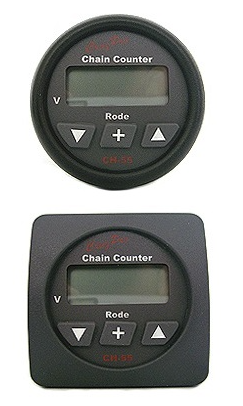

The CruzPro CH-55 Simple Rode Counter displays how much anchor chain or rode you have let out. Works with any windlass AC or DC or hydraulic. Simple installation, the intelligent sensor does not need a connection to the windless controls. No expensive interface adapters needed.
It features easy calibration to any windlass, and displays deployed rode in feet, metres or fathoms. The CH55 can display your windlass battery voltage so you can check the condition of the windlass battery from the helm. It also remembers how much chain you have deployed when the power is off and displays the correct number when you turn it back on. 5 levels of backlight (including OFF) can be selected from the front panel.
The units are factory calibrated, if required this can be adjusted over a wide range using the front-panel switches to suit your particular needs. All calibration data is saved to non-volatile memory and will stay when the power is removed.
CruzPro CH-55 Simple Rode Counter Features:
- Displays how much anchor chain or rode you have let out
- Works with any windlass AC or DC or hydraulic
- Simple installation, the intelligent sensor does not need a connection to the windless controls
- Easy calibration to any windlass
- Display deployed rode in feet, metres or fathoms
- Displays your windlass battery voltage so you can check the condition of the windlass battery from the helm
- Remembers how much chain you have deployed when the power is off and displays the correct number when you turn it back on
- 5 levels of backlight (including OFF) can be selected from the front panel
- Square bezel
CruzPro CH-55 Simple Rode Counter Specifications:
- Operating Voltage: 6.5 – 33.0 VDC
- Current Drain: 0.018 amps nominal
- Operating Temperature: 32 to 122 deg F (0 to 50C)
- Functions: Display Rode Display Windlass Battery Voltage
- Display: 4 digit LCD 5 levels of backlighting feet, metres or fathoms windlass battery voltage
- Size: 65 x 104 mm
- Outer square dimensions: 62 x 62 mm
- Mounting: 54mm round hole
