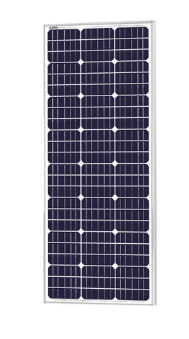

100W 12V SOLAR FIXED FRAME

SOL50110 - 100 watt marine strong solar panel for a 12V on board battery system manufactured by Solarland.

Ratings: Voltage 17.2 VDC; Current 6.40 Amps; Power 110W

Dimensions: Length 52.13"; Width 20.24", Depth 1.38"

Weight: 17.20 lbs

Connection: Terminals located in water resistant enclosure on backside of solar PV panel.

These A-Grade panels are built using only the highest quality components to ensure the best possible performance, & are designed for use in a wide variety of off-grid & grid-tie applications.

All modules have a power tolerance +10/-5% & are backed by our 10/25 year power warranty.

The high performance cells are encapsulated in EVA (ethylene-vinyl-acetate) & placed between high transparent low iron tempered glass & a durable TPT (tedlar-polyester-tedlar) back sheet. The panels are framed using heavy-duty anodized aluminum frames, providing exceptional panel rigidity.

All modules are produced in ISO9001:2000 certified factories & are subject to our stringent triple-level quality control & testing procedures before they leave the factory floor; ?ensuring a high quality & consistent end product. Each panel has a serial number for tracking purposes.

More detailed information:
	SOL50110.pdf
