Solar PV Combiner Boxes


6 products

A PV combiner box joins several solar panel strings into one output before the charge controller, and holds a breaker or fuse for each string. That simplifies wiring, protects each string and gives you a single disconnect point. This collection includes MidNite Solar MNPV3, MNPV6 and MNPV12 solar combiner boxes (3, 6 and 12 circuits), MNPV6 breaker versions and a junction box kit for smaller marine and RV arrays.

How to choose a solar combiner box

  • Number of strings: pick a box with enough breaker or fuse positions, plus spare room for future panels.
  • Voltage rating: the box and breakers must be rated above the array open-circuit voltage.
  • Current: size breakers to each string and the output conductor to the combined current.
  • Location: outdoor or wet locations need a suitable enclosure.

Do I need a PV combiner box?

With two or more parallel strings, a solar PV DC combiner box with overcurrent protection on each string is usually required. Small two-panel marine systems may only need a junction box.

What else protects a solar array?

Add a disconnect and surge protection. See solar disconnects and surge protector devices.

A solar power combiner box sits between the array and the charge controller, giving each string its own breaker or fuse and the whole array a single disconnect point. The MidNite Solar MNPV3, MNPV6 and MNPV12 boxes in this collection handle 3, 6 and 12 circuits. For bonding and wiring advice, see grounding solar PV systems on a boat.

A solar combiner box matters most once an array has two or more strings in parallel. Each string gets its own breaker or fuse inside the box, so a fault in one panel cannot feed back through the others, and the combined output leaves on one conductor to the charge controller with a single disconnect point. The MidNite Solar MNPV3 handles three circuits, which covers most boat arrays, while the MNPV6 takes six. Rate the breakers above each string's short-circuit current and the box above the array open-circuit voltage, and leave a spare position for the panel you add later.

On the DC side of a solar system the enclosure is as important as the breakers. A solar pv dc combiner box for a boat or outdoor site needs a weather-resistant housing, DC-rated breakers (AC breakers do not interrupt DC arcs safely) and a voltage rating above the array open-circuit voltage; the MidNite Solar boxes here are rated to 150VDC. Add a solar disconnect between the combiner and the controller so the array can be isolated for service, and fit a surge protector if the array is exposed to lightning. Bond the enclosure to the boat's DC ground.

Solar combiner box buying guide

A PV combiner box is where parallel solar strings meet, each through its own breaker or fuse, before one output cable runs to the charge controller. Choosing one comes down to three numbers: how many strings you have now and later, how much current each string and the whole array can push, and the voltage the breakers must interrupt. The MidNite Solar MNPV boxes in this collection are enclosures only; breakers or fuse holders are bought separately and sized to your panels.

Count strings, then add spare positions

Each parallel string needs one breaker position. A typical boat array of two or three panels wired in parallel fits the MNPV3. Four to six strings call for the MNPV6, and larger shore-side or RV arrays the MNPV12. Leave at least one empty position for the panel you add later, because changing enclosures means rewiring everything.

Size breakers to the panel, not to the box

  • Under US NEC practice, a string overcurrent device is sized to at least 1.56 times the string's short-circuit current (Isc): 125% for high-irradiance conditions, then another 125% for continuous current.
  • It must not exceed the panel's maximum series fuse rating printed on the panel label or datasheet.
  • Example: a panel with Isc of 9.67 A needs at least 15.1 A, so a 20 A breaker is the usual choice if the panel's series fuse rating is 20 A or higher.
  • Use DC-rated breakers made for the box. MidNite lists 63 A as the largest breaker for its 150 V MNEPV breakers in these enclosures.

Check the busbar and output current

The busbar limits the total current of all strings combined. Add up the Isc of every string and compare it with the box rating in the table. For a 12 V boat system, remember that the output cable from the combiner to the controller carries the whole array current, so size that conductor for the total, not for one string.

Where it goes on a boat

The MNPV enclosures are powder-coated aluminum with stainless hardware and an insulating deadfront, rated NEMA 3R (outdoor rainproof). That is rain protection, not protection against hose spray or green water, so mount it under a hardtop, inside a locker or on an arch where it stays out of direct spray. MidNite allows vertical wall or pole mounting, or a sloped mount up to 14 degrees.

ModelStrings with breakersStrings with fusesMax output currentOutput circuitsString wire
MNPV33260 A114–6 AWG
MNPV664120 A (breakers), 80 A (fuses)Up to 214–6 AWG
MNPV1212200 A214–6 AWG

All three boxes take 14 to 1/0 AWG output wire, carry a UL1741 listing and are lockable.

Products in this collection

Questions

What does a solar combiner box do?

It joins several PV strings in parallel through individual breakers or fuses and sends their combined current to the charge controller on one output conductor. The breakers also let you switch off one string for service.

Is a PV combiner box the same as a junction box?

No. A junction box only connects wires. A combiner box adds overcurrent protection for each string and a busbar rated for the combined current.

Can I use AC breakers in a PV solar combiner box?

No. Use DC-rated breakers listed for the enclosure, such as MidNite MNEPV breakers in the MNPV boxes.

Which solar power combiner fits a small boat array?

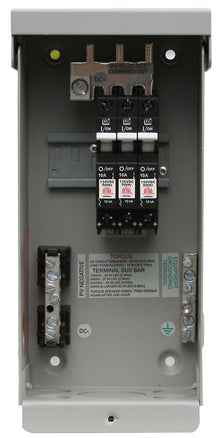

For two or three parallel panels the MNPV3 is enough: three breaker positions and a 60 A busbar. If you plan to add panels, the MNPV6 leaves room to grow.

Need help choosing? Contact us with your panel model and array layout, and we will help you pick the box and breakers.
