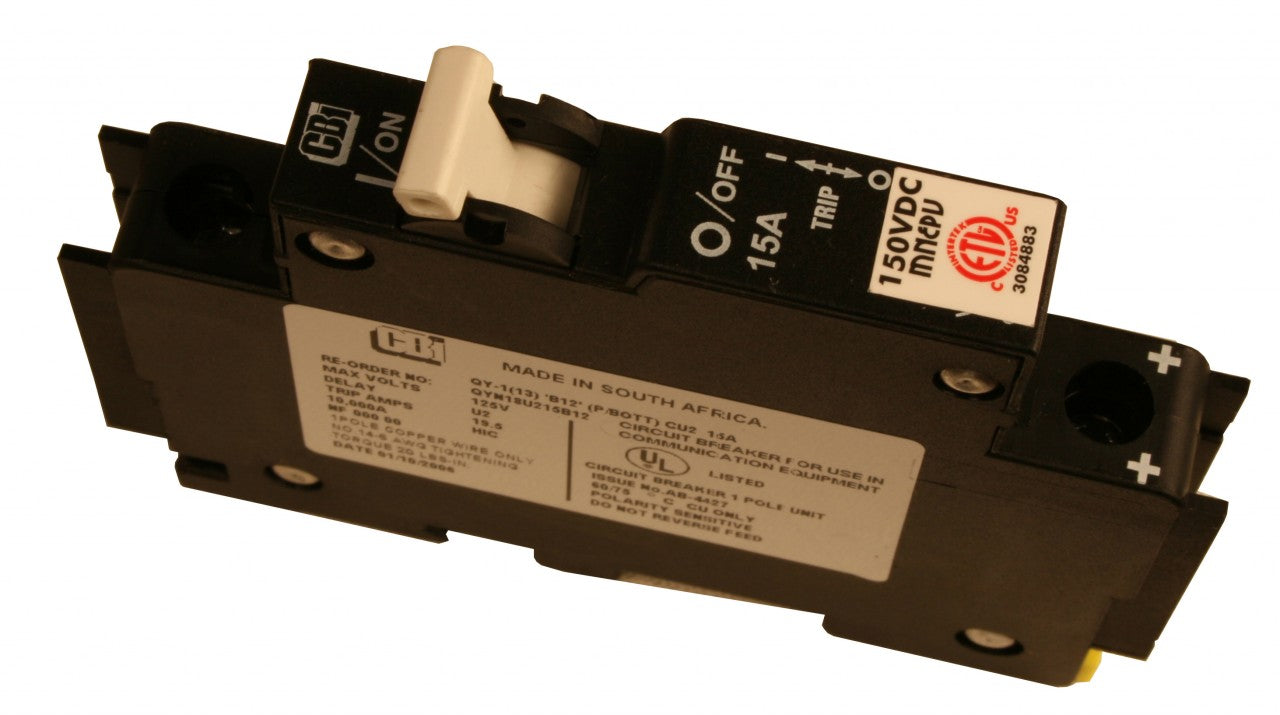

150V Din Rail Mounted Circuit Breaker 10 - 50 Amp
Questions about compatibility? Call us for help.
Ships in 1-2 business days
Carrier delivery times and cost shown at checkout.
Couldn't load pickup availability
MidNite Solar 150VDC din rail mount breaker (13mm wide).
MNEPV
breakers are the same as CBI QY breakers except the standard used is
inadequate for the solar industry. MidNite breakers have been evaluated
by ETL to 150VDC and are listed for US and Canada. All of the NRTL
listings still apply.
Branch circuit rated 489A
MidNite's breakers are rated to break
the full rated load at the rated voltage repeatedly, with NO DAMAGE.
Always use a properly sized breaker for disconnecting.
Breakers ordered under the CBI part numbering system will not be listed for 150VDC and in many cases are not suitable for the solar industry.
150VDC ETL listed in the US and Canada
10,000 AIC
Breaker Torque Value: 20 In-Lbs (2.3NM)
All MidNite circuit breakers can be used at 100% rated current when mounted in a MidNite enclosure
Listed for US & Canada
