Ryse CIRCUIT KIT - AIR X - 12V - SN 60000-64473
Regular price
$372.00
Sale price
$372.00
Regular price
$0.00
Unit price
per
WGP20409
2-ARCT-101-01
Questions about compatibility? Call us for help.
Get an additional off
Add the item to cart to apply the discount
Ships in 1-2 business days
Carrier delivery times and cost shown at checkout.
Couldn't load pickup availability
This item is currently out of stock. We can often special-order it or suggest an equivalent.
Sorry, it's out of stock.
But we can let you know when it's back in.

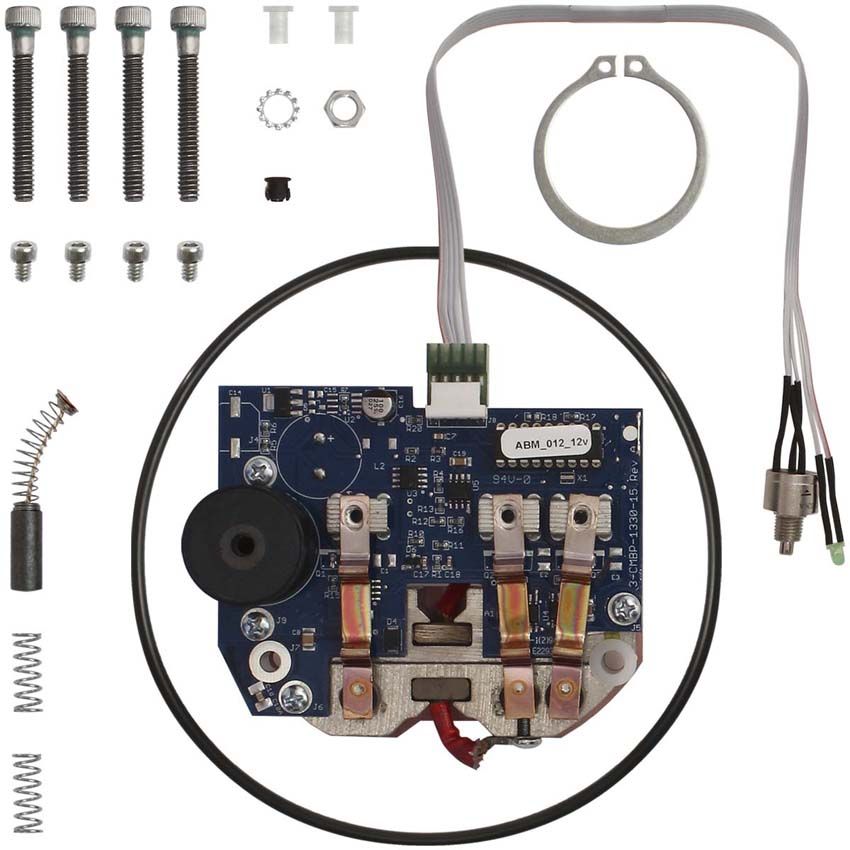

2-ARCT-101-01 CIRCUIT KIT - AIR X - 12V - SN 60000-64473. This replacement circuit kit is for 12V AIR X wind turbines with serial numbers in that range. Later 12V units from serial number 68835 are listed under the Air X 12V control board.
Specifications
- Part number: 2-ARCT-101-01
- Turbine: AIR X, 12V
- Serial number range: 60000-64473
- Factory voltage regulation set point on 12V systems: 14.1 volts
- Regulator adjustment range on 12V systems: approximately 13 to 17 volts
Questions & Answers
How often should the circuit be replaced?
The AIR owner's manual says to replace the circuit board every seven years, and to check the brushes and slip rings for wear while the turbine is open.
What does the job involve?
The AIR circuit replacement instructions start with disconnecting the wires and taking the turbine off its mount. The nose cone and blade assembly come off next, using a 5/16 inch hex key, then the three face screws, using a 5/32 inch hex key. Testing is done before the turbine is reconnected to the battery.
What if my serial number is outside this range?
Contact us with your serial number before ordering. This kit is listed for 60000-64473 only.
