220W BiFacial Lumera 12V Solar Panel
Regular price
$200.00
Sale price
$200.00
Regular price
$220.00
Unit price
per
SOL90220
Questions about compatibility? Call us for help.
Get an additional off
Add the item to cart to apply the discount
Pallet Freight
After the order is placed, we will contact you to confirm the shipping cost. Your card will not be charged until the order ships.
Couldn't load pickup availability
This item is currently out of stock. We can often special-order it or suggest an equivalent.
Sorry, it's out of stock.
But we can let you know when it's back in.

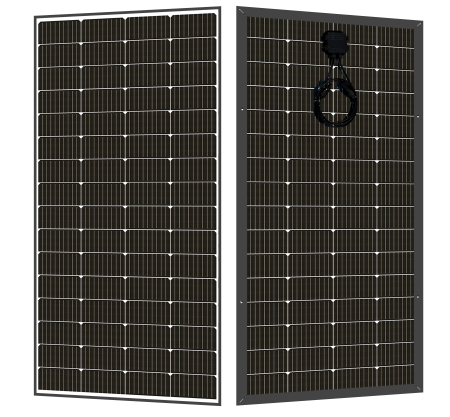

Lumera 220W BiFacial solar panel is elegant and powerful. With up to 30% additional gain from internal reflection and backside power generation, our PERC cell design provides the most energy for footprint.
The Lumera Solar LS220BI is a 220-watt, 12-volt-class bifacial monocrystalline panel with a clear anodized aluminum frame and tempered glass. It can also produce power from light that reaches its back side. It is used to charge 12 V battery banks on boats, RVs and off-grid cabins through a solar charge controller.
Specifications (Lumera Solar LS220BI spec sheet, STC)
- Rated power (Pm): 220 W, tolerance +5 W
- Maximum power voltage (Vmp): 19.7 V
- Maximum power current (Imp): 11.2 A
- Open circuit voltage (Voc): 22.6 V
- Short circuit current (Isc): 11.60 A
- Cell type: monocrystalline; module efficiency 21%
- Temperature coefficients: power -0.30%/°C, voltage -0.28%/°C, current 0.045%/°C
- Series fuse rating: 15 A; maximum system voltage 600 VDC
- Materials: clear anodized aluminum frame, tempered glass
- Warranty (power output): 25 years
| Weight | 26.6lbs |
|---|---|
| Dimensions | 56.52 x 30.2 x 1.37 inches |
Questions & Answers
Is this panel suitable for a 12 V battery system?
Yes. It is a 12 V-class panel with a Vmp of 19.7 V and a Voc of 22.6 V. Connect it through a solar charge controller.
What fuse should I use?
The spec sheet lists a 15 A series fuse rating.
How much extra power does the bifacial back side add?
Lumera claims up to 30% additional gain. The actual gain depends on how much light reaches the back of the panel. The 220 W rating is the front-side value at standard test conditions.
