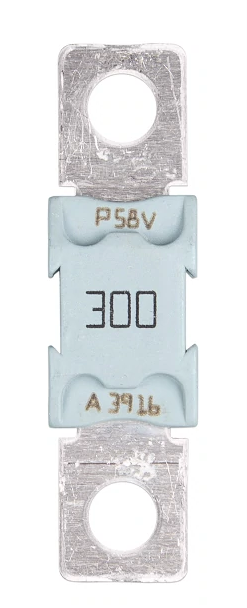

300 A / 32V Victron Lynx Distributor MEGA Fuse

The high-quality Victron 300A / 32V MEGA Fuse provides robust, ultra-reliable protection for high-current DC electrical systems against sudden overloads and short circuits. It is specifically designed to fit the Victron Lynx Distributor and is ideal for high-load systems featuring heavy-duty inverters, winches, bow thrusters, and large battery banks in marine, RV, and off-grid automotive environments.

Engineered with an incredibly low cold resistance of 0.17 mΩ and a tiny voltage drop of only 80 mV, this MEGA fuse keeps power loss to an absolute minimum even at sustained high currents. Its exceptional short-circuit interrupt capacity of up to 2000A ensures that high-energy faults are isolated instantly, protecting your expensive system electronics from catastrophic damage.

With its heavy-duty, bolt-down design featuring M8 bolt holes, it fits perfectly inside the Victron Lynx series, creating a secure and vibration-resistant connection. This makes it a dependable choice for demanding mobile and marine applications where smaller, standard fuses would overheat or fail under continuous load.

Features

Optimized for Lynx Distributor
Features the standard larger physical form factor (68 mm x 20 mm) and bolt-down layout perfect for securing directly inside the Victron Lynx Distributor or other heavy-duty MEGA fuse holders.

Energy Efficient
Engineered with an incredibly low cold resistance of 0.17 mΩ and a tiny voltage drop of only 80 mV, keeping power loss to an absolute minimum even at sustained high currents.

Excellent Short-Circuit Rating
Built to withstand demanding spikes, boasting a short-circuit interrupt capacity of up to 2000A to isolate faults instantly and protect your expensive electronics.

Heavy-Duty High-Current Design
Ideal for continuous high-draw applications up to 300A, filling the gap where smaller compact fuses would overheat or fail.

Specifications

Datasheets and Manuals

Victron MEGA-fuse Information Sheet
