345W Xantrex Solar Max Flex Panel
Regular price
$1,420.00
Sale price
$1,420.00
Regular price
$0.00
Unit price
per
SOX10345
Questions about compatibility? Call us for help.
Get an additional off
Add the item to cart to apply the discount
Pallet Freight
After the order is placed, we will contact you to confirm the shipping cost. Your card will not be charged until the order ships.
Couldn't load pickup availability

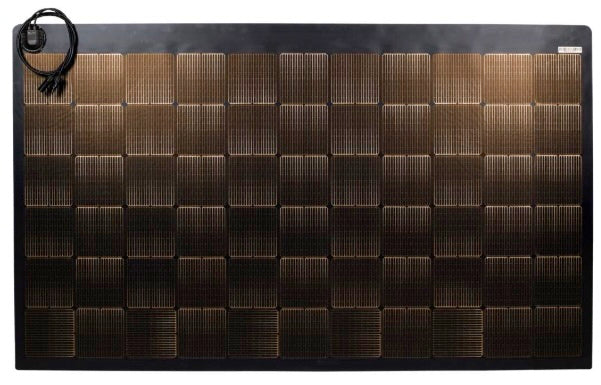

Xantrex 345W Solar Panel Max
The Xantrex Solar Max 330W flex panels, feature solar panels with a mesh grid-technology that provides superior durability and performance benefits. With approximately 2000 points of contact per cell, this mesh grid-technology allows the panel to flex up to 180 degrees, without impacting power output. Subjected to extreme environmental and accelerated lifecycle testing beyond regulatory standards, the Max panel was tested to be 50 times more durable than a standard flexible panel. Also designed with a highly protective top-layer called ETFE (Ethylene-Tetra-Fluoro-Ethylene), this allows for better light transmittance, corrosion resistance, stain-resistance, weather resistance, and overall superior durability over a wide temperature range, compared to non-ETFE semi-flexible panels. In addition, the Max panel can harvest up to 20% more energy during the day in low light or shaded conditions compared to a standard solar panel.
Electrical Specifications (at STC)
Maximum Power (Pmax): 345 W
Voltage at Max Power (Vmp): 33.0 V
Current at Max Power (Imp): 10.4 A
Open Circuit Voltage (Voc): 40.8 V
Short-Circuit Current (Isc): 11.2 A
Maximum System Voltage: 600 VCC
Mechanical & Design Data
Cell Type: Monocrystalline PERC
Number of Cells: 66 cells
Top-Layer Material: ETFE (Ethylene-Tetra-Fluoro-Ethylene)
Dimensions: 68.3 in x 43.2 in x 0.08 in (1734 mm x 1098 mm x 2 mm)
Weight: 16.8 lbs (7.6 kg)
Temperature & Operating Range
Operating Temperature: -40°C to +85°C (-40°F to +185°F)
Flexibility: Bends up to 180 degrees without power loss
