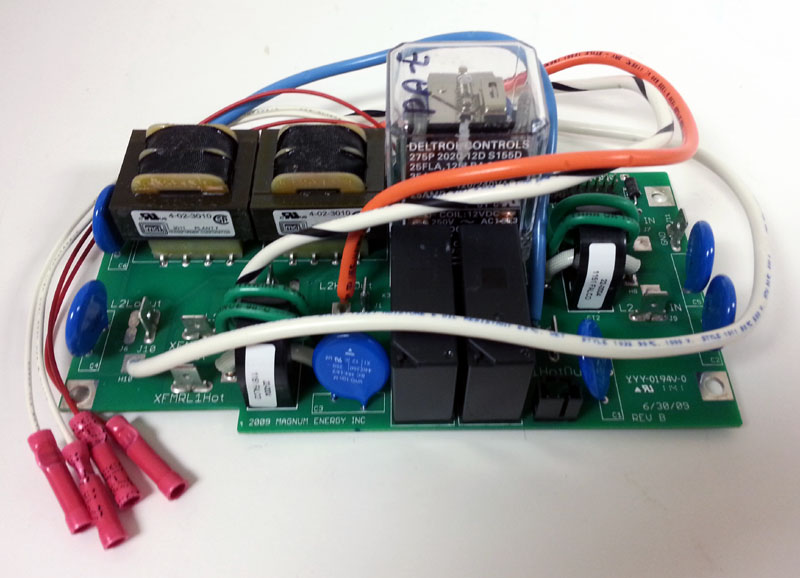

Tested A/C Board for Magnum MS-PAE Series Inverters (Factory New)
Manufacturer Part No. TACB-MSPAE
This is a factory-new, tested replacement A/C board, Magnum part number TACB-MSPAE, for the Magnum Energy MS-PAE Series. These are 120/240 VAC split-phase pure sine wave inverter/chargers, used mainly in off-grid, backup and renewable energy systems. Order this board to repair the AC section of an MS4024PAE or MS4448PAE.
Compatibility
- Magnum MS4024PAE (24 VDC, 4000 VA)
- Magnum MS4448PAE (48 VDC, 4400 VA)
- Not for the standard ME or MS Series. Those use TACB-ME/MS.
MS-PAE Series specifications (Sensata/Magnum datasheet)
- Output: 120/240 VAC split phase from one unit, 60 Hz, THD under 5%
- MS4024PAE: 18 to 34 VDC input, 4000 VA continuous, 105 A DC charger
- MS4448PAE: 36 to 64 VDC input, 4400 VA continuous, 60 A DC charger
- Transfer: 2 legs at 30 A per leg
- Parallel stacking: up to four units (17.6 kW) with MP panels and an ME-ARTR router
- Cooling: dual 92 mm brushless DC fans, 0 to 120 cfm variable speed
Other MS-PAE service parts: TCB-MS4024PAE control board, TFB-MS4448PAE FET board and the MS-AE/MS-PAE filter board.
Questions & Answers
Does this board fit both the MS4024PAE and the MS4448PAE?
Yes. It is the A/C board for the MS-PAE Series, and the MS4024PAE and MS4448PAE are the two models in that series on Magnum's datasheet.
Will it fit a standard MS4024 (non-PAE)?
No. The standard MS Series uses a different A/C board, listed as TACB-ME/MS.
Can I return it?
No. This board is non-returnable and non-refundable.
