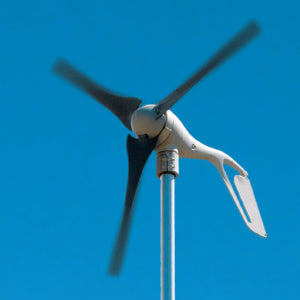

AIR 30 12/24/48 Volts Wind Turbine
Get an additional off
Add the item to cart to apply the discount
Special Order
After the order is placed, we will contact you to confirm shipping time and cost. Your card will not be charged until the order ships.
Couldn't load pickup availability
This item is currently out of stock. We can often special-order it or suggest an equivalent.
Sorry, it's out of stock.
But we can let you know when it's back in.
Shop safely
Secure your shopping experience with various safe and trusted payment methods.
The AIR 30 from Ryse Energy is a small wind turbine for battery charging on land, sold in 12V, 24V and 48V versions, with or without a digital controller. Ryse positions it for industrial use in moderate to high wind, often in hybrid systems with solar.
We recommend AIR 30 for small battery-charging applications for industrial applications only. The AIR 30 is an ideal wind turbine for hybrid systems with solar. AIR 30 is built and backed by the worldwide leader in small wind.
- Advanced microprocessor for reliable energy production
- Integrated overcharge protection
- Permanent mold cast aluminum body
- High-quality, field tested components
- Quiet operation
- Lightweight; easy to install
- Plug and play battery connection
- For use in non-corrosive environments
Part Number: 1-AR30-10-12
Multi-Color BLADE INSTALL GUIDE
PREPARING FOR A WIND TURBINE INSTALLATION
Specifications
- Energy: approx. 30 kWh a month at 5.5 m/s (12 mph) average wind
- Rotor diameter: 1.17 m (46 in)
- Swept area: 1.07 m2 (11.5 ft2)
- Weight: 5.9 kg (13 lb)
- Startup wind speed: 3.59 m/s (8 mph)
- Voltage: 12, 24 or 48V DC, specific to the battery bank and not field adjustable
- Overspeed protection: electronic torque control
- Survival wind speed: 40.2 m/s (90 mph)
- Mount: 1.5 in schedule 40 pipe, 48 mm (1.9 in) outer diameter
- Warranty: 3-year limited standard, up to 5 years per Ryse Energy
Questions & Answers
Can the AIR 30 be installed on a boat?
It is specified for land locations and non-corrosive environments, so it is not meant for marine installation.
Can I change the voltage later?
No. Each turbine is built for a specific battery bank voltage (12V, 24V or 48V) and is not field adjustable.
How much energy does it produce?
Ryse Energy rates it at approximately 30 kWh per month at an average wind speed of 5.5 m/s. Above 35 mph the turbine goes into overspeed protection and produces minimal power.
What pipe does the turbine mount on?
1.5-inch schedule 40 pipe with a 48 mm (1.9 in) outer diameter.
