AIRX Wind/Solar e20 Cnt Panel Mnt

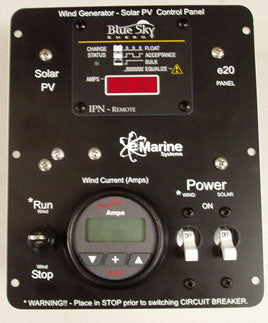

e20 Control Panel for Air X Wind and 300W Solar (Panel mount)

e20 Control Panel provides a single on board operator station to control and monitor Solar PV and Wind Generator alternate energy systems. It will support Wind Generators up to 400W and Solar PV panels up to 300W managing upwards of up to 190 amp-hrs of daily energy production. Units work on a nominal 12Volt system and can be ordered as a flush mounted Panel or in a water resistant Enclosure.

The e20 is equipped with two primary circuit breakers, digital ammeter and Stop/Run switch for direct control of your wind generator and a MPPT Solar Boost Charge Controller displaying Solar PV current production and battery bank voltage. Status led indicates "state of battery" charge condition. A large terminal block is provided for easy wiring connection. Panel is fully calibrated and ready for installation.

Features Dual Main Circuit Breakers Run/Stop Wind Generator Switch Large, easy hook up terminal block Built in MPPT Solar Boost 2512i controller Compact size One station controls both energy devices Dedicated Wind Generator ammeter State of Charge Battery LED Solar PV amps and battery voltage Aux output or second battery charger* Panel Mount or Enclosed.   Optional battery temperature sensor can be connected as well.

* Requires ordering Aux Out" version.   Aux Out will allow powering/controlling a LVD auxiliary load to 25A OR charge an auxiliary battery (such as a starter) up to 2A OR Dust to Dawn light control to 25A only the Solar power source.

The e20 CONTROL PANEL operates and monitors both the wind generator and solar PV panels. Itis equipped with two On/Off power circuit breakers, digital ammeter displaying wind production and Stop/Run switch for direct control of the wind generator. Control of the solar is accomplished through a MPPT Solar Boost Charge Controller that displays the solar production (current) and battery bank state (voltage). A status led indicates state of battery energy charge condition. A large terminal block is provided for easy wiring connection. Panel is fully calibrated and ready for installation.

Dimensions: 7.5" x 6.1" x 4.0"
