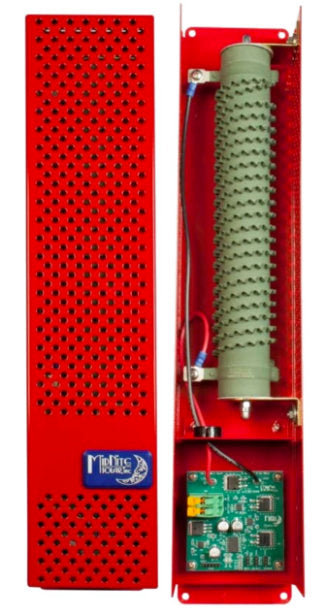

All-In-One Battery Diversion Load Control

DISCONTINUED

The All-In-One Battery Diversion Load Control is an integrated solution designed to prevent 12, 24 or 48 volt batteries from overcharging. Compact and easy to install, the CDL incorporates a 300 Watt resistive heating element and controller board in a powder coated steel enclosure.

Note: External fuse required for installation. Not Included.

Models Specifications:

• PWM (Pulse Width Modulation) for highest charging performance without flicker
• Three Stage Charging
• Selectable for sealed or flooded batteries using jumper
• Status and fault indicator LEDs
• Connects directly to the battery bank

12V Version MNCDL300-12:

• Operating voltage range: up to 15VDC
• Recommended fuse or circuit breaker: 30 Amps
• Integrated Load Resistor: 0.75 Ohm, 300 Watt, wire wound

24V Version MNCDL300-24:

• Operating voltage range: up to 30VDC
• Recommended fuse or circuit breaker: 15 Amps
• Integrated Load Resistor: 3 Ohms, 300 Watt, wire wound

12V Version MNCDL300-48:

• Operating voltage range: up to 60VDC
• Recommended fuse or circuit breaker: 10 Amps
• Integrated Load Resistor: 12 Ohm, 300 Watt, wire wound

Part Numbers:

• MNCDL-300-12
• MNCDL-300-24
• MNCDL-300-48

Battery Diversion Load information:
	Battery Diversion Load Manual
