Blue Sea

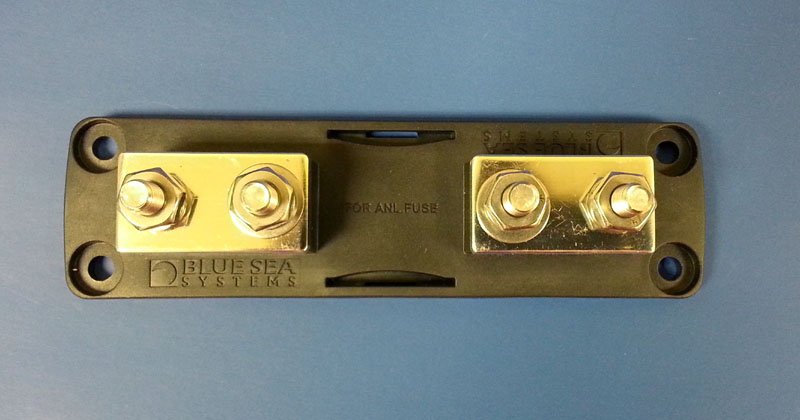

ANL Fuse Block 35-750A w/Cover

$68.50
$68.50 $0.00
SKU: FSH10405

Questions about compatibility? Call us for help.

Ships in 1-2 business days

Carrier delivery times and cost shown at checkout.

ANL Fuse Block 750A w Cover

  • Accepts 5/16" (M8) ring terminals
  • Swing out fuse design allows replacement of the fuse without removing fasteners
  • Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact
  • UL 94-V0 base resists high heat
  • Insert molded studs ensure secure fuse mounting
  • Insulating cover satisfies ABYC/USCG requirements
  • Cover breakouts allow wire access in any direction
  • Fuse sold separately

Manufacturer Part # ANLHD

Specifications

Maximum Voltage  48V DC
Maximum Amperage  750A
Mounting Holes  Accept 1/4" Screw
Fuse Mounting Blocks
 Tin-Plated Copper
Maximum Cable Size  4/0 AWG (120mm<sub>2</sub>)
Maximum Torque  107 in-lb (12.09 Nm)
Terminal Stud Size  5/16"-18 (M8)
Weight  0.87lb
