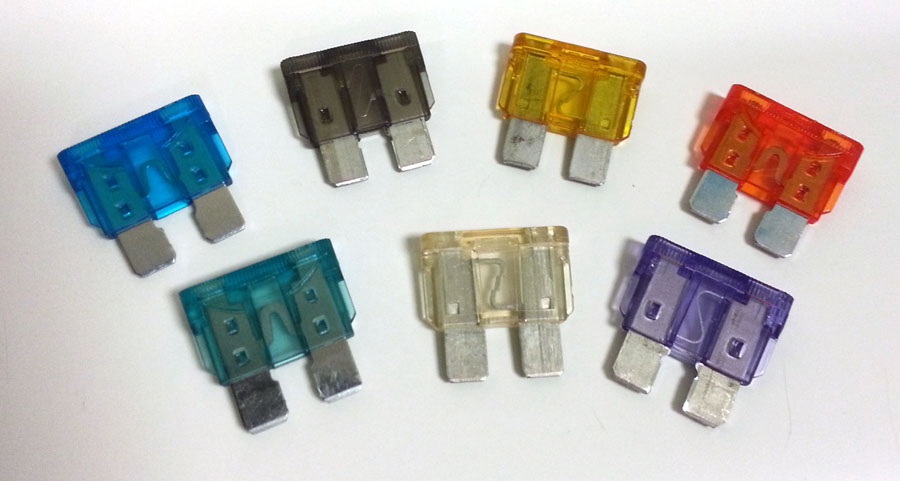

ATC Fuse

Used in Automotive and low-voltage control circuits to 32V, Operating Temperature Range -40°C to 100°C, 95% RH non-condensing. Case color indicates amperage rating.  Never replace  a fuse amperage  rating greater than the amperage size being replaced or it may cause physical or personal harm.

Ratings:

    P/N (amp)     Color code

ATC-1           Black

ATC-2           Gray

ATC-3           Violet

ATC-4            Pink

ATC-5             Tan

ATC-7½        Brown

ATC-10           Red

ATC-15           Blue

ATC-20          Yellow

ATC-25           Clear

ATC-30          Green

ATC-35       Blue/Green

ATC-40          Orange
