Balmar 60 Series Alternators Dual Foot 100A & 120A

Skip to product information

Regular price $776.00
Sale price $776.00 Regular price $0.00

Get an additional off

Add the item to cart to apply the discount

Ships in 1-2 business days

Carrier delivery times and cost shown at checkout.

This item is currently out of stock. We can often special-order it or suggest an equivalent.

Request a quote or availability.

Sorry, it's out of stock.

But we can let you know when it's back in.

SKU: 60-SERIES

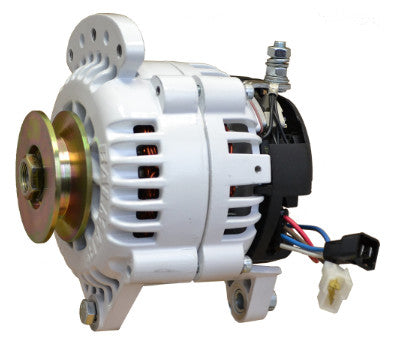

Balmar 60 Series alternators are small-case, high-output units in 100A and 120A versions with a dual-foot saddle mount. Balmar lists this mount as Hitachi style, typical for Yanmar, Westerbeke, Lehman and Perkins-Sabre engines. They are for boat owners making a modest charging upgrade.

60-Series Dual Foot Alternators

60 Series models feature a saddle mount with a 3.15" space between front and rear mounting feet.

  • Balmar’s Top Selling Alternator Line
  • 100A and 120A Versions
  • Patented Smart Ready® Technology
  • Dual Fan Cooling
  • High Airflow Frame
  • Maximum RPM: 12,000
  • USCG Title 33, ISO, SAE and CE Compliant
  • Ideal for Modest Charging Upgrades

Specifications

  • Mount: 3.15 in dual foot saddle, Hitachi style
  • Part numbers: 60-100-XX and 60-120-XX, where XX is SV (single vee), DV (dual vee), K6 or J10 (serpentine) pulley
  • Power take-off: 4.0 HP at 100A, 4.8 HP at 120A
  • Regulation: internal Smart Ready fixed voltage (14.1V on 12V systems) or external P-type with ARS-5 or Max Charge regulator
  • Cooling: dual internal fans
  • Grounding: dedicated terminal, case isolated
  • Low RPM cut-in: 1,320 rpm

Questions & Answers

Do I need an external regulator?

Not always. With small battery loads and frequent engine running, the internal Smart Ready regulator may be enough. For larger deep-cycle banks or less frequent engine use, as on most sailboats, Balmar recommends adding an ARS-5 or Max Charge regulator.

Will this alternator fit my engine?

Check your mounting style. The 60 Series is for a 3.15-inch dual foot saddle mount. Single foot engines use the Balmar 621 Series instead.

Does the 120A version need a belt or pulley change?

Balmar says an AltMount pulley kit is required for 120A if a dual vee or serpentine pulley is not already present.

Balmar 6-Series Alternators Data Sheet

Balmar 60 Series Information:
PDF Balmar 60 Series Alternators
