Balmar XT Series charging kit with a 170A, 12V alternator on a 3.15 inch dual foot mount, a J10 serpentine pulley and an external multi-stage regulator. It is for boats with large battery banks on Hitachi-style mounts, typical of Yanmar, Westerbeke, Lehman and Perkins-Sabre engines.
Kit Contents

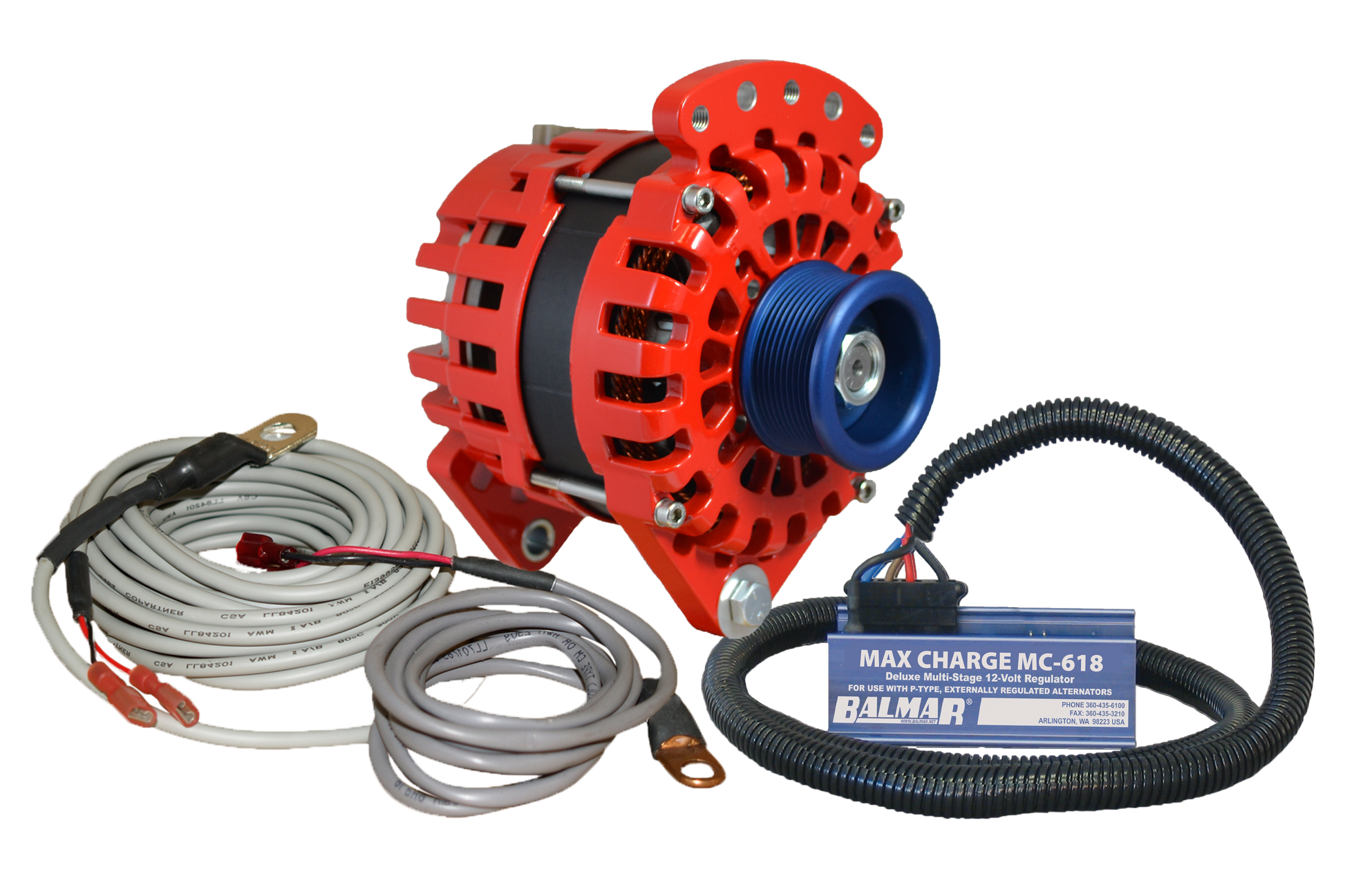

Kit Includes: XT-DF-170-J10 Alternator, Max Charge Regulator, Temperature Sensors & Mounting Hardware
Specifications
- XT Series Alternator: 170A, 12V, Saddle Mount (Dual Foot), 3.15in, J10 AltMount Serpentine Pulley, Case Ground
- Hitachi-Style Mounting; Typical for Yanmar, Westerbeke, Lehman & Perkins-Sabre Engines
- Output at idle speeds: up to 128A in 12V applications
- Cut-in: 1,150 rpm; maximum alternator speed: 18,000 rpm
- Power take-off: 5.2 HP
- Regulation: external P-type, with an internal Smart Ready voltage regulator (14.1V on 12V systems)
- Dual internal fans, sealed heavy duty radial bearings, ventilated cast aluminum case
- Mounting foot bore: 10 mm
- Ignition protection: USCG Title 33, ISO 8846, SAE J1171
Replaces
AT-DF-MC-165-KIT, AT-DF-165-J10-KIT
Questions & Answers
How do I know it fits my engine?
Check for a 3.15 inch dual foot (saddle, Hitachi-style) mount. Balmar also offers a product configurator at balmar.net for matching a charging system to your engine.
Do I need to change my belts?
Balmar says XT alternators should only be used with Dual Vee or multi-groove serpentine belts. This kit has a J10 serpentine pulley, and an AltMount conversion kit may be required if your engine does not already have one. The alternator takes 5.2 HP from the engine.
Will my tachometer still work?
Balmar notes that XT alternators may require a Tachometer Signal Stabilizer (part number 15-TSS) if your tachometer is not adjustable.
How big a battery bank does it suit?
Balmar's selection guide uses an AGM example: AGM can accept a 40% charge load, so a 400Ah AGM bank can accept 160A from the alternator.
