Balmar AT Series Dual Foot 165A 200A
Get an additional off
Add the item to cart to apply the discount
Ships in 1-2 business days
Carrier delivery times and cost shown at checkout.
Couldn't load pickup availability
This item is currently out of stock. We can often special-order it or suggest an equivalent.
Sorry, it's out of stock.
But we can let you know when it's back in.
Shop safely
Secure your shopping experience with various safe and trusted payment methods.

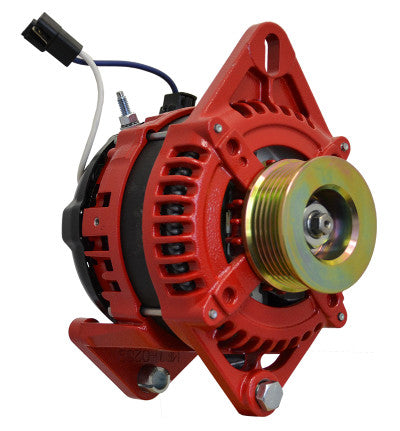

Balmar AT-Series Dual Foot alternators are high-output alternators in a small case, available in 165 A or 200 A. The dual foot (DF) version has a 3.15 inch ID saddle mount and replaces most small case alternators that use a saddle style mount, such as Hitachi, Lucas and Mitsubishi. They suit boats with large battery banks that have outgrown a stock alternator.
AT-Series Dual Foot Alternators are isolated ground, externally regulated, and feature 16 stator poles. Field and stator terminals are included in a pigtail included with the alternator.
Features
- 165A or 200A in a Small Case Package
- Up to 125A at Idle Speeds
- Smart Ready Technology
- 25% More Efficient
- Dual Fan Cooling
- High Airflow Frame
- Maximum RPM: 10,000
- Ideal for Large Battery Banks
- Mounting: dual foot, 3.15 inch ID saddle mount
- Pigtail wires: white stator output, blue external field
| Balmar AT Series Information: | |
| Balmar AT Series Alternators | |
Questions & Answers
Will this fit my existing alternator mount?
The dual foot version has 3.15 inches between its mounting feet and replaces most small case alternators with a saddle style mount, such as Hitachi, Lucas and Mitsubishi. Your installer may need to adapt the mount.
Does it need an external regulator?
Yes. It is externally regulated, and the blue field wire connects to an external voltage regulator through a wiring harness.
Can I run it in reverse rotation?
Balmar warns that running AT-Series alternators in reverse (counter-clockwise) rotation may affect alternator cooling, so check the manual first.
Can the white wire drive a tachometer?
Yes. The white stator output wire provides unrectified AC voltage that can be used as a signal for an electric tachometer.
