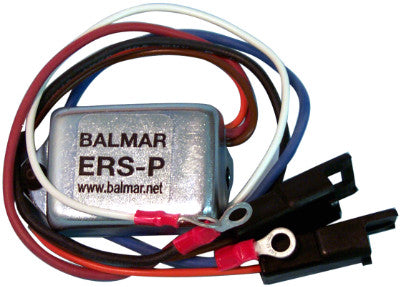

Balmar ERS Economy Voltage Regulator
Regular price
$67.00
Sale price
$67.00
Regular price
$54.00
Unit price
per
SKU: ATB55023
Questions about compatibility? Call us for help.
Ships in 1-2 business days
Carrier delivery times and cost shown at checkout.
Couldn't load pickup availability
The ERS Economy Voltage Regulator is ideal as an emergency back up and mounts easily to an alternator case bolt, and can be used with any externally regulated P-type alternator.
The ERS-KIT includes the ERS regulator, and a variety of terminal connections that allow modification for a wide range of alternator termination types.
The regulator includes power, ignition, ground and field wires.
ERS Regulator Specifications:
Alternator Compatibility: 12-Volt, P-type Alternator
Regulation Type: Single-Stage
Default Voltage: 14.1V
Voltage Adjustment: No
Regulator Housing: Metal
Start Delay: N/A
Temperature Range: -40 - 125 ̊F
Typical Field Output: 8A
Maximum Field Output: 10A
Dimensions: 2”L x 1.5”W x .50”H
Ship Weight: 1.0 lbs.
| Balmar ERS Regulator Info: | |
|
ERS Regulator Datasheet |
