Schneider

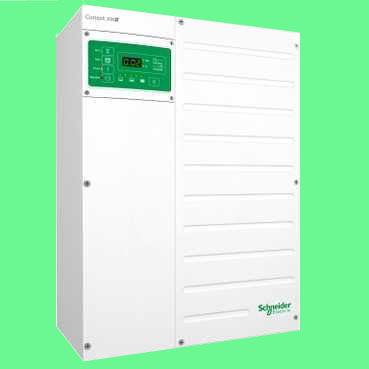

Conext XW6848-120/240-60 Inverter/Charger 48V 6.8kW

$4,000.00
$4,000.00 $4,892.00
SKU: IVS80060

Questions about compatibility? Call us for help.

Ships in 1-2 business days

Carrier delivery times and cost shown at checkout.

Schneider Conext XW+6048NA -120/240-60 Inverter/Charger

The Conext XW inverter/charger features sine-wave power and advanced battery charging technology. The product line offers inverter/chargers in power levels from 4 kW to 6 kW in an expandable configuration allowing for future system growth in either single or three-phase applications up to 36 kW.
The products can be used in either a grid-tied with battery backup or off-grid application to suit a wide variety of installations.

Benefits

  • True sine-wave output
  • High surge capacity – Full 200% rated output power is delivered to loads
  • All models suitable for off-grid or hybrid/backup power applications
  • Single-phase and three-phase configurations possible
  • Up to four inverters can be installed in parallel to create larger single-phase systems up to 24 kVA
  • Up to two inverters per phase can be connected for three-phase installations up to 36 kVA
  • Dual AC inputs (grid and generator) with automatic transfer; external transfer switch not required
  • Efficient, power factor corrected, high-current, multistage battery charging
  • Configurable auxiliary output
  • Non volatile memory stores parameter settings
  • Full control of generator with optional automatic generator start (AGS)
  • Mounting bracket included
  • Local LED display on inverter shows output power, charge current and battery level, to provide system status at-a-glance
  • Network communication capability allows device settings and activity to be communicated to other plug-and-play devices, such as System Control Panel (SCP), Automatic Generator Start (AGS) and MPPT Solar Charge Controllers.

Specifications

Model XW6048-120/240-60
Continuous output power 6,800 W
Surge rating (10 seconds) 15,600 W
Waveform True Sine Wave
AC connections AC1 (Grid)
AC2 (Generator)
AC output voltage
 L-N: 120 Vac +/- 3%;
L-L: 240 Vac +/- 3%
AC output frequency 60.0 +/- 0.1 Hz
Automatic transfer relay 60 A
Typical transfer time 8 ms
DC input voltage (nominal) 50.4 vdc
DC input voltage range 44 - 64 vdc
Dimensions (H x W x D) 23" x 16" x 9"
Weight 125 lbs
Battery temperature sensor included
Standard warranty 5 years
Part number 865-6848-01


More detailed information:
PDF Brochure for Conext XW Series Hybrid Inverter/Charger
PDF Installation Overview for Conext XW Series Hybrid Inverter/Charger
PDF Installation Guide for Conext XW Series Hybrid Inverter/Charger
PDF Operation Guide for Conext XW Series Hybrid Inverter/Charger
