Control Board for Magnum MS2812 Inverter TCB-MS2812
Regular price
$323.65
Sale price
$323.65
Regular price
$431.53
Unit price
per
IVM99615
TCB-MS2812
Questions about compatibility? Call us for help.
Get an additional off
Add the item to cart to apply the discount
Ships in 1-2 business days
Carrier delivery times and cost shown at checkout.
Couldn't load pickup availability
This item is currently out of stock. We can often special-order it or suggest an equivalent.
Sorry, it's out of stock.
But we can let you know when it's back in.

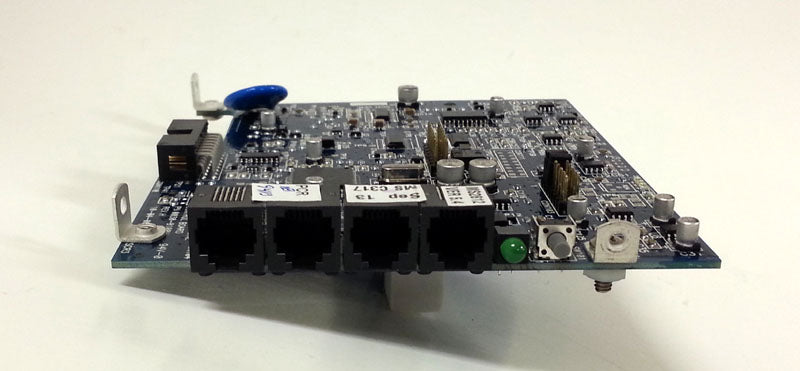

Tested Control Board for Magnum MS-2812 Inverters (Factory New)
Manufacturer Part No. TCB-MS2812
This is a factory-new, tested replacement control board, Magnum part number TCB-MS2812, for the Magnum Energy MS2812 pure sine wave inverter/charger. The MS2812 is the 2800 VA, 12-volt model in the MS Series, and it is common on boats and RVs with large 12 V battery banks. Order this board when an MS2812 needs its control board replaced.
Compatibility
- Magnum MS2812 inverter/charger (12 VDC)
- Other MS models use their own control boards: TCB-MS2012 (MS2012) and TCB-MS4024 (MS4024)
- The matching FET board for the MS2812 is TFB-MS2812, sold separately
MS2812 specifications (Magnum MS Series datasheet)
- Continuous output: 2800 VA at 25 °C, 120 VAC 60 Hz pure sine wave
- Battery: 12 VDC nominal; maximum continuous input current 373 A DC
- Charger: 125 A DC continuous, power factor corrected (PF > 0.95)
- AC transfer: 2 legs at 30 A, for 120 V/30 A or 240 V/60 A service
- Listings: ETL listed to UL/cUL 458, UL 1741 and CSA C22.2 #107.1-01
Questions & Answers
Will this board fit an MS2012?
No. The TCB-MS2812 is for the MS2812. The MS2012 uses the TCB-MS2012 control board.
Does it include the FET board?
No. This listing is the control board only. The MS2812 FET board (TFB-MS2812) is a separate part.
Can I return it?
No. This board is non-returnable and non-refundable, so confirm your inverter model before ordering.
** This item is non-returnable/non-refundable. **
