CruzPro AM60 Digital Rudder Angle Indicator

CruzPro AM60 Digital Rudder Angle Indicator learns sender resistance, easy to calibrate, individual limit alarms for Port/Stbd. NMEA 0183 serial data output or External Alarm output.

The AM-60 can be operated from a 9.5 to 33.0 VDC power supply. The AM60 will function with all standard rudder angle sensors and can be connected as either a master or slave

Model#

AM-60R Round

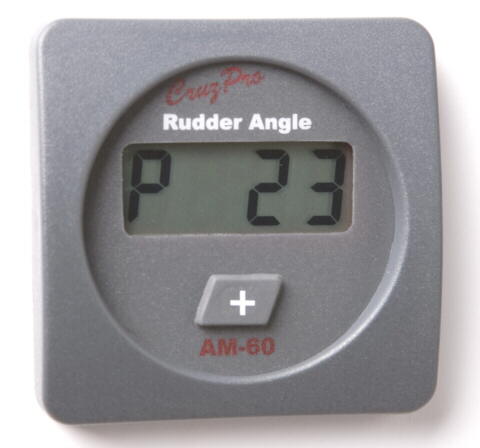

AM-60S Square

CruzPro AM60 Specifications:

Operating Voltage:

• 9.5 - 33.0 VDC

Current Drain:

• 0.030 amps nominal

Display:

• 4 digit LCD, 5 levels of backlighting.

Data:

• Rudder Angle: -90 to +90 degrees
• Port and Starboard.
• Connect as Master or Slave.
• NMEA 0183 serial data output.
• Standard $IIRSA sentence.

Alarms:

• Independent Port and Starboard built-in 85 dB audible alarmsfor excess rudder angle.
• Programmable External Alarm output.

Size:

• 2.5" dia X 4.1" deep (61mm x 104mm).

Mounting:

• 2-1/8" (55mm) round hole

CruzPro AM60 Connection Diagram

CruzPro AM-60 Information:
	CruzPro AM60 Manual
