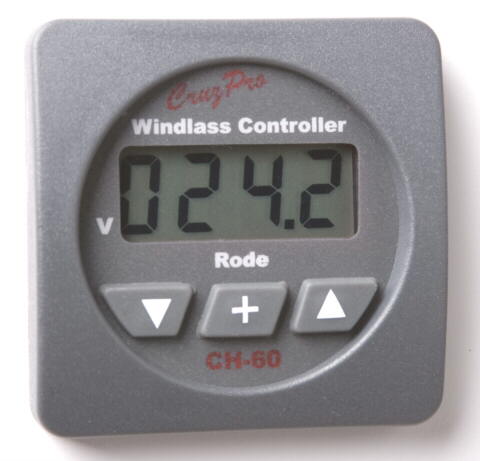

CruzPro CH60 Intelligent Chain Counter Windlass Controller

CruzPro CH60 Intelligent Chain Counter Windlass Controller advises how much chain is out, displays windlass battery voltage, slows windlass, NMEA 0183 data output, etc.

The CH-60 chain counter can be programmed to back-jog the chain a few links when you remove your finger from the UP button, removing tension off the chain, capstan and windlass gears increasing windlass life and automatically "parks" the chain into a chain stopper.

Model#

CH-60R Round

CH-60S Square

CruzPro CH60 Specifications:

Operating Voltage:

• 6.5 - 33.0 VDC

Current Drain:

• 0.018 amps nominal

Operating Temperature:

• 32 to 122 deg F (0 to 50C).

Functions:

• Display Rode
• Display Windlass Battery Voltage
• Slow anchor when approaching bow roller
• Programmable Rode deployment
• Auto UP/DOWN function
• Automatic backjog to release tension off gears
• Auto JAM detecte

Data Output:

• NMEA 0183 serial 4800 BAUD

NMEA Data:

• Anchor rode, Feet, Meters, FathomsWindlass Battery Voltage, 6.5-33.0 VDC

Solenoid Drive Capability:

• Activates UP/DOWN reversing solenoids drawing up to 2.5 amps

Display:

• 4 digit LCD5 levels of backlighting Feet, Meters or Fathoms Windlass battery voltage

Size:

• 2.5" dia X 4.1" deep (65mm x 104mm).

Mounting:

• 2-1/8" (55mm) round hole

CruzPro CH60 Connection Diagram
