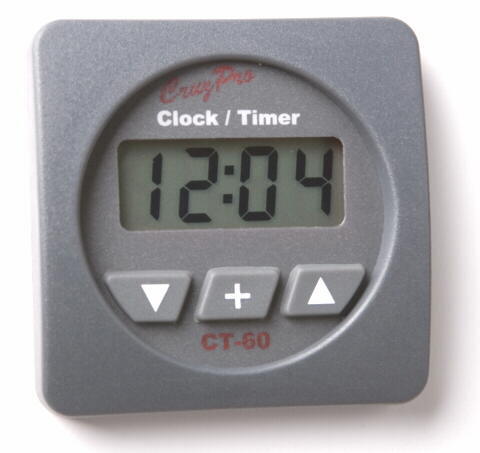

CruzPro CT60 Digital LCD Clock Race Watch Timer

CruzPro CT60 Digital LCD Clock Race Watch Timer is an intelligent 12/24 Clock, Watch/Countdown timers with 8 built in alarms. NMEA 0183 Data output. Auto time-set when GPS time data available.

When the CT-60 digital clock is used as a watch timer, it is programmable with a time interval anywhere from 1 second to 99 minutes and 59 seconds.

The CT60 Watch Timer has a large LCD display yet draws only 0.018 amps. 5 levels of backlight (including OFF) can be selected from the front panel and is saved to non-volatile memory.

Model#:

CT-60R Round

CT-60S Square

CruzPro CT60 Specifications:

Operating Voltage:

• 9.5 - 33.0 VDC

Current Drain:

• 0.018 amps nominal

Display:

• 4 digit LCD, 5 levels of backlighting.

Data:

• Time of Day, Programmable Race & Watch Timers.

Ranges:

• 12 or 24 hour display format

Accuracy:

• Better than 1 second/dayFront panel adjustable

GPS Input:

• Will auto set to GPS time whenever GPS NMEA 0183 signal available

Data Output:

• NMEA 0183 serial 4800 BAUD

Size:

• 2.5" dia X 4.1" deep (61mm x 104mm).

Mounting:

• 2-1/8" (55mm) round hole

CruzPro CT60 Connection Diagram

CruzPro CT-60 Information:
	CruzPro CT60 Manual
