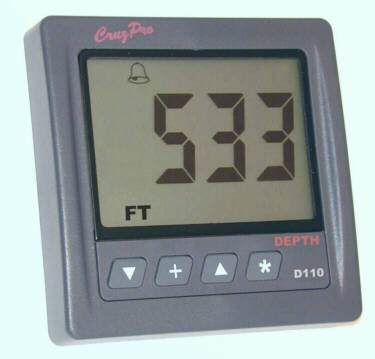

CruzPro D110 Digital DSP Depth Sounder

CruzPro D110 Digital DSP Depth Sounder compact to 1000 Ft/ 300 meters with shallow and deep Alarms, anchor drag alarm, keel offset with NMEA 0183 output.

The D110 1000' DSP Depth Sounder uses Digital Signal Processing (DSP) to reliably display water depth from 1.2 foot (0.4 Metre) to 1000+ feet (365 Meters). Depth can be displayed in feet, meters or fathoms. Variable display damping is provided so the user can optimize response speed against display stability (averaging).

Model# D-110

CruzPro D110 Specifications:

Operating Voltage:

• 9.50 - 16.00 VDC

Current Drain:

• 0.035 amps nominal

Display:

• Large 4 digit LCD, 5 levels of backlighting with external backlight on/off control

Data:

• Engine RPM (Wide calibration range)
• Max RPM Seen (since reset)
• Engine Hours
• Elapsed Time
• Maintenance Alarm
• 13 levels of display damping

Range:

• 1.2 to 1000+ feet (in tenths below 20.0)
• 0.4 to 365+ meters (in tenths below 20.0)
• 0.2 to 167+ fathoms (in tenths below 20.0)

Display Data:

• DepthShallow AlarmDeep AlarmKeel OffsetFeet, Meters, Fathoms

Data Output:

• NMEA 0183 serial 4800 BAUD oruse as external alarm output

Alarms:

• Built-in 85 dB audible alarm. Settable shallow, deep and anchor drag alarms.

Size:

• 4.3" x 4.3" (110m x 110mm)

Mounting:

• 2-1/8" (54mm) round hole

D110 Wiring Diagram

CruzPro D-110 Information:
	CruzPro D110 Manual
