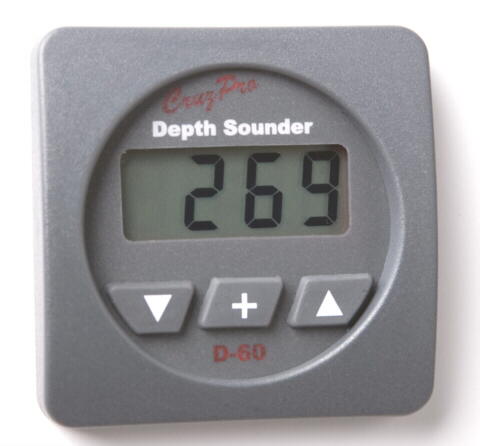

CruzPro D60 Digital Depth Gauge

CruzPro D60 Digital Depth Gauge with Digital Signal Processing (DSP) to reliably display water depth from 1.2 foot (0.4 Metre) to 1000+ feet (365 Meters)

The D60 DSP also provides superior high speed rejection of false signals due to transducer slap (buffeting), surface turbulence, thermoclines, double bounce and is almost immune to other depth sounders and fishfinders operating near-by.

Model#

D-60R Round

D-60S Square

CruzPro D60 Specifications:

Operating Voltage:

• 9.50 - 16.00 VDC

Current Drain:

• 0.030 amps nominal

Display:

• 4 digit LCD, 5 levels of backlightingVariable display damping

Data:

• Depth 1.2 to 19.9 feet in tenthsand 20 - 1000+ feet full digitsor Metres, or Fathoms equivalent

Operating Temperature:

• 32 to 122 deg F (0 to 50 C)

Keel Offset:

• Adjustable -20.0 to +20.0 feet in tenths

Alarms:

• Built-in 85 dB audible alarmsfor shallow, deep and anchor drag

Size:

• 2.5" dia X 4.1" deep (61mm x 104mm)

Mounting:

• 2-1/8" (55mm) round hole

D60 Wiring Diagram

CruzPro D-60 Information:
	CruzPro D60 Manual
