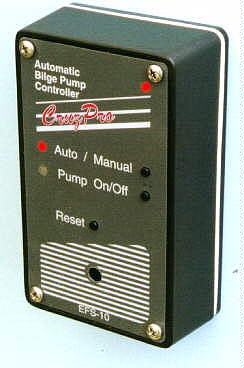

CruzPro EFS10 Automatic Bilge Pump Controller 24V

CruzPro EFS10 Automatic Bilge Pump Controller 24V with Probe & built in Alarms 24VDC. Keeps track of how many times activated.

The EFS-10 24V monitors the presence of water in the bilge of your boat and automatically turns on your pump if the electronic float switch detects water continuously for more than 15 seconds. Once turned on, the EFS10/24 pump will run for at least 15 seconds.

The EFS10/24 Bilge Pump can also be manually activated from the front panel.

Model# EFS-10/24

CruzPro EFS-10/24 Specifications:

Operating Voltage:

• 9.5 to 18 VDC, 0.02 ampere nominal.

Alarms:

• Built-in 85 dB audible alarm and two LED indicators. Can be connected to optional External 105 dB Loud Alarm (LA-20)

Operating Temperature:

• 0 to 50 deg Celsius ( 32 to 122 deg Fahrenheit).

Switch Capability:

• 8 amps continuously, larger pumps up to 15 amps intermittently (until thermal protection cuts in)

Thermal Protection:

• Thermal protection automatically resets when cooled and the pump starts again, if necessary

Size:

• 100 x 60 x 30 mm (4 x 2.4 x 1.2 inch)

CruzPro EFS-10/24 Connection Diagram

CruzPro EFS10 24V Information:
	CruzPro EFS10/24 Manual
