CruzPro EFS20 Automatic Dual Bilge Pump Controller 12V
Regular price
$203.29
Sale price
$203.29
Regular price
$0.00
Unit price
per
MTS10655
Questions about compatibility? Call us for help.
Get an additional off
Add the item to cart to apply the discount
Ships in 1-2 business days
Carrier delivery times and cost shown at checkout.
Couldn't load pickup availability

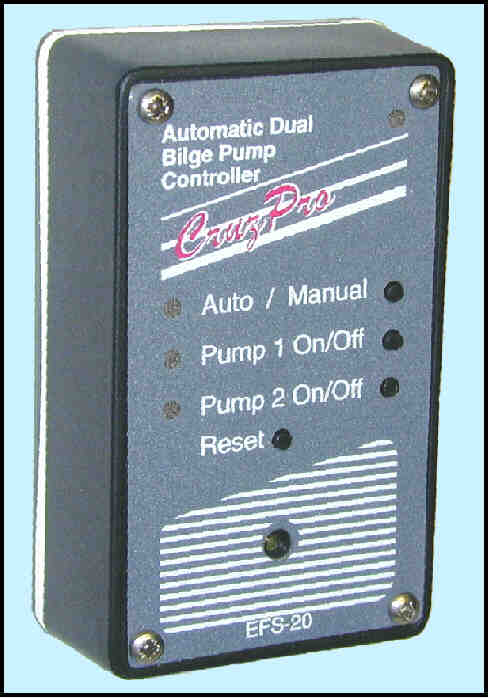

CruzPro EFS20 Automatic Dual Bilge Pump Controller 12V with Probe & Alarm 12 VDC. Dual pumps for redundancy while keeping track of number of activations.
The EFS-20 12V can run two pumps drawing a total of up to 20 amps continuously, and larger pumps for shorter periods of time.
The internal thermal shutdown protects the EFS-20/12 from overheating when driving large pumps.
Model# EFS-20/12
CruzPro EFS-20/12 Specifications:
Operating Voltage:
- 9.5 to 18 VDC, 0.02 ampere nominal.
Alarms:
- Built-in 85 dB audible alarm and two LED indicators. Can be connected to optional External 105 dB Loud Alarm (LA-20)
Operating Temperature:
- 0 to 50 deg Celsius ( 32 to 122 deg Fahrenheit).
Switch Capability:
- Pump #1: 7 amps (15 amps until thermal protection cuts in).
- Pump #2: 13 amps (15 amps until thermal protection cuts in).
Thermal Protection:
- Thermal protection automatically resets when cooled and the pump starts again, if necessary
Size:
- 100 x 60 x 30 mm (4 x 2.4 x 1.2 inch)
CruzPro EFS-20/12 Connection Diagram
| CruzPro EFS20 12V Information: | |
 |
CruzPro EFS20/12 Manual |
