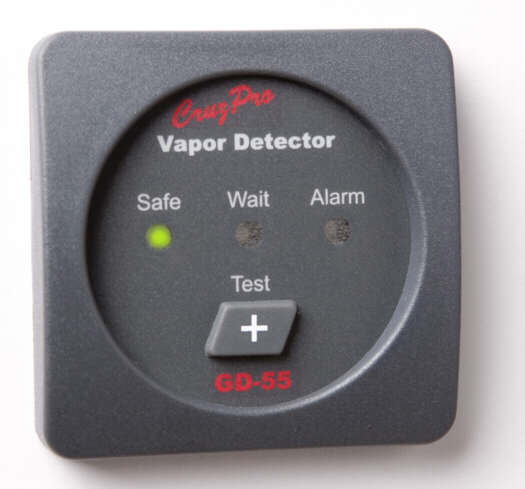

CruzPro GD55 Gas Vapor Monitor

CruzPro GD55 Gas Vapor Monitor uses new technology to lower the power requirements for the sensor and draws only 0.12 amps at 12VDC.

The GD-55 gas detector comes with one LPG/Petrol/Gasoline sensor with 5 meters (16 feet) of cable. Installation into a round 2.4" diameter (55mm) hole requires only a screwdriver. An instruction manual and all mounting hardware is provided

Model#

GD-55R Round

GD-55S Square

GD55 Marine Gas Detector Specifications:

Operating Voltage:

• 10.5 - 16.0 VDC

Current Drain:

• Less than 0.10 amps

Sensitivity:

• Better than 25% LEL (Lower Explosive Level)

Operating Temperature:

• 0 to 50 deg Celsius ( 32 to 122 deg Fahrenheit)

Alarms:

• Built-in 85 dB audible alarm.

Size:

• 2.75" X 4.1" deep (70mm to 104mm)

Sensor:

• LPG / Gasoline / Petrol sensor standard, internal

GD55 Gas Vapor Monitor Connection Diagram

CruzPro GD-55 Information:
	CruzPro GD-55 Manual
