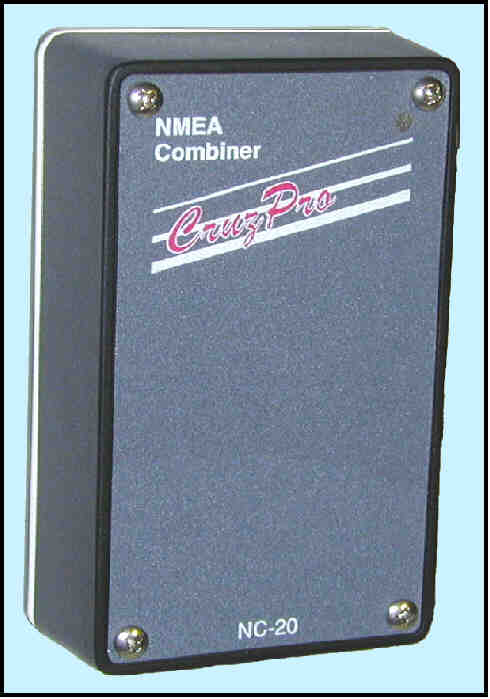

CruzPro NC20 8 Channel NMEA to RS232 Convertor

CruzPro NC20 8 Channel NMEA to RS232 Convertor / Combiner connects multiple Gauges (or other NMEA instruments) to a computer's serial input port.

The NC20 can handle any mix of NMEA and RS232 input signals at 4800 BAUD and multiple units can be daisy-chained for more inputs than 4 or 8 channels.

Model# NC20/8

NC20/8 Convertor Specifications:

Operating Voltage:

• 9.5 to 33.0 VDC, 0.05 amps nominal.

Operating Temperature:

• 0 to 50 deg Celsius ( 32 to 122 deg Fahrenheit).

Size:

• 100 x 60 x 30 mm (4 x 2.4 x 1.2 inch).

Input Channels:

• 4 and 8 channel versions available.

Input Level:

• 0 to 1.6 Vp-p minimum, -20 to +22 VDC maximum.

Input Data Rate:

• 4800 BAUD

Output Data Rate:

• 4800 BAUD or 9600 BAUD (Selectable).

Drive Capability:

• RS232 output -10VDC to +12VDC

NC20 8 Channel Convertor Connection Diagram
