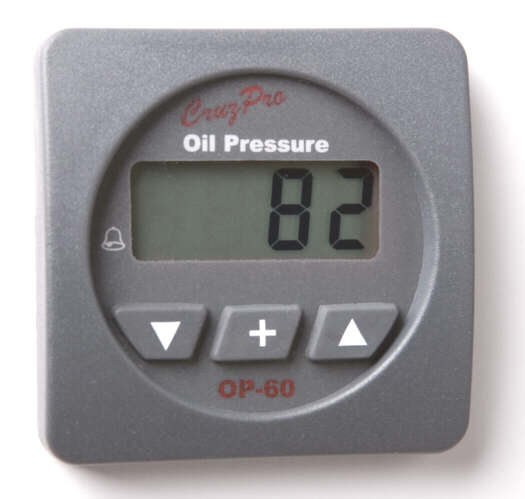

CruzPro OP60 Oil Pressure Gauge

CruzPro OP60 Oil Pressure Gauge unique, low and high pressure alarms. NMEA 0183 Data Output.Preprogrammed for popular senders from VDO, Teleflex, Faria, etc.

The OP-60 Oil Pressure Gauge displays engine oil pressure in Psi or Bars.

Model#:

OP-60R Round

OP-60S Square

OP60 Digital Oil Pressure Gauge Specifications:

Supply Voltage:

• 9.5 - 33.0 VDC

Current Drain:

• 0.018 amps nominal

Display:

• 4 digit LCD, 5 levels of backlighting

Data:

• Oil Pressure, 0 to 75, 0 to 80, 0 to 150, 0 to 350 and 0 -400 PSI or equivalent Bars

Inputs:

• Built-in calibration curves for all popular senders from Teleflex, VDO, GM, Stewart-Warner, Faria, etc.

Data Output:

• NMEA 0183 serial 4800 BAUD

Alarms:

• Built-in 85 dB audible alarm. Settable high and low oil pressure alarms.The NMEA 0183 serial output pin can be user programmed as an external alarm output terminal.

Size:

• 2.5" dia X 4.1" deep (61mm x 104mm)

Mounting:

• 2-1/8" (55mm) round hole

CruzPro OP60 Oil Pressure Gauge Connection Diagram

CruzPro OP60 Information:
	CruzPro OP60 Manual
