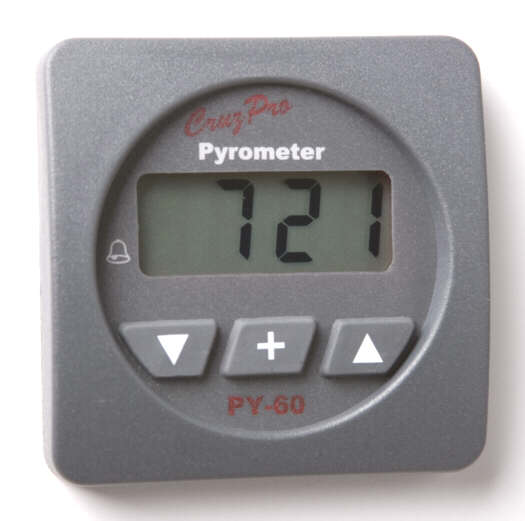

CruzPro PY60 Digital Pyrometer Gauge

CruzPro PY60 Digital Pyrometer Gauge is a low Cost Pyrometer -20 deg C to 1100 deg C. It comes complete with K-type thermocouple. NMEA 0183 data output.

The PY-60 displays engine exhaust gas temperature in degrees F or C.

Model#:

PY-60R Round

PY-60S Square

CruzPro PY60 Digital Pyrometer Gauge Specifications:

Supply Voltage:

• 9.5 - 33.0 VDC

Current Drain:

• 0.018 amps nominal

Display:

• 4 digit LCD, 5 levels of backlighting13 levels of display damping

Data:

• Temperature 32 to 2000 degrees F(0 to 1100 deg C) +/- 1%Maximum Temperature seen memory

Inputs:

• Thermocouple (type K provided)

Data Output:

• NMEA 0183 serial 4800 BAUD

Alarms:

• Built-in 85 dB audible alarm. Settable high and low temperature alarms

Size:

• 2.5" dia X 4.1" deep (61mm x 104mm)

Mounting:

• 2-1/8" (55mm) round hole

PY60 Digital Pyrometer Gauge Connection Diagram

CruzPro PY60 Information:
	CruzPro PY60 Manual
