CruzPro RH60 RPM Engine Hours & Elapsed Time Gauge

CruzPro RH60 RPM Engine Hours & Elapsed Time Gauge accurate engine RPM monitor with built in setable Alarms, max RPM memory, engine hours, elapsed trip time. NMEA 0183 data output and works with any engine and can be driven from a wide range of signal frequencies and amplitudes.

The RH-60 is a four digit digital display of engine RPM, total engine hours, elapsed trip time and maximum r.p.m. seen.

Model#:

RH-60R Round

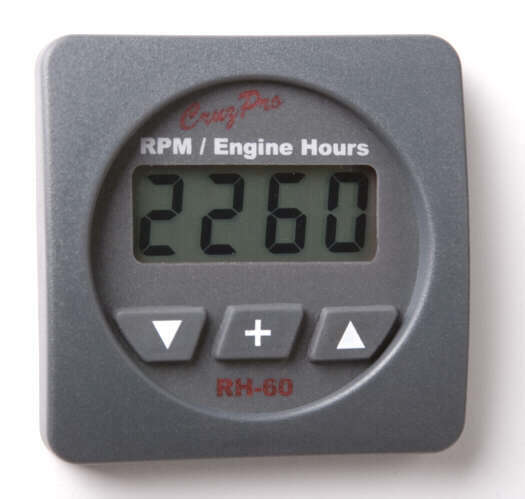

RH-60S Square

RH60 Digital RPM Engine Hours & Elapsed Time Gauge Specifications:

Supply Voltage:

• 9.5 - 33.0 VDC

Current Drain:

• 0.018 amps nominal

Display:

• 4 digit LCD, 5 levels of backlighting13 levels of display damping

Data:

• RPM (0-9999), Engine Hours (0.0-9999), Elapsed Time (00:00 mins/sec to 99:59 hrs/mins) Max. RPM Alarm, Max RPM seen storage (reset-able).

Inputs:

• Low, Medium and High sensitivity inputs works from any RPM sender signal

Data Output:

• NMEA 0183 serial 4800 BAUD or use as external alarm output

Alarms:

• Built-in 85 dB audible Max RPM alarm and settable maintenance hours alarm

Size:

• 2.5" dia X 4.1" deep (61mm x 104mm)

Mounting:

• 2-1/8" (55mm) round hole

RH60 RPM / Engine Hour / Elapsed Time with Alarm Connection Diagram

CruzPro RH60 Information:
	CruzPro RH60 Manual
