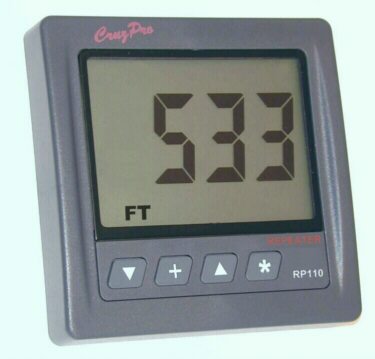

CruzPro RP110 Remote Data Repeater

CruzPro RP110 Remote Data Repeater can monitor up to four separate data channels and up to ten new sentences can be stored in the on-board flash memory; these can be re-programmed as many as 1 million times so your RP110 will never go obsolete.

The Intelligent NMEA 0183 Remote Data Repeater is already factory pre-programmed to repeat 200 "standard" pre-defined NMEA 0183 sentences.

Model# RP-110

CruzPro RP110 Specifications:

Operating Voltage:

• 9.5 - 33.0 VDC

Current Drain:

• 0.035 amps nominal

Display:

• Large 4 digit LCD, 5 levels of backlighting with external backlight on/off control

Data:

• 200 NMEA 0183 sentences built-in (see list below)
• Flash memory for ten new sentences
• Reprogrammable 1 million times
• 4 separate input channels
• Auto search mode scans all 4 channels.

Data Output:

• NMEA 0183 serial 4800 BAUD, $VWVHW, $VWMTW, $VWVLW

Size:

• 4.3" x 4.3” x 3.5” deep (110 x 110 x 89 mm).

Mounting:

• 2-1/8" (54mm) round hole

CruzPro RP110 Connection Diagram

CruzPro RP-110 Information:
	CruzPro RP110 Manual
