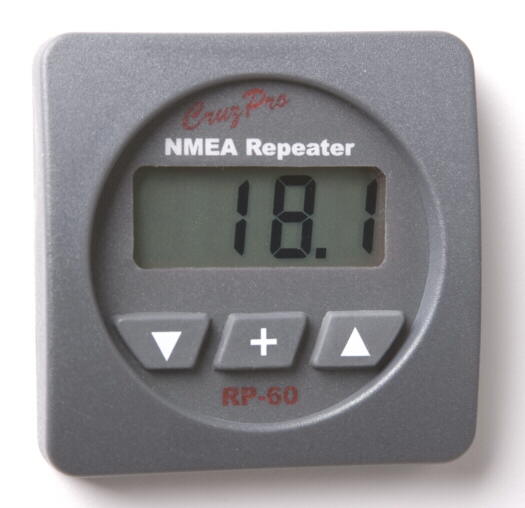

CruzPro RP60 Remote Data Repeater

CruzPro RP60 Remote Data Repeater is capable of displaying over 200 standard and proprietary NMEA 0183 sentences and can also can monitor up to 4 separate data channels and can be trained to learn new sentences.

The RP60 Remote Data Repeater's compact design, only 2-1/2" diameter and mounts in a standard 2-1/8" round instrument hole

Model#

RP-60R Round

RP-60S Square

CruzPro RP60 Specifications:

Operating Voltage:

• 9.5 - 33.0 VDC

Current Drain:

• 0.035 amps nominal

Display:

• Large 4 digit LCD, 5 levels of backlighting with external backlight on/off control

Data:

• 200 NMEA 0183 sentences built-in (see list below)
• Flash memory for ten new sentences
• Reprogrammable 1 million times
• 4 separate input channels
• Auto search mode scans all 4 channels.

Data Output:

• NMEA 0183 serial 4800 BAUD, $VWVHW, $VWMTW, $VWVLW

Size:

• 4.3" x 4.3” x 3.5” deep (110 x 110 x 89 mm).

Mounting:

• 2-1/8" (54mm) round hole

CruzPro RP60 Connection Diagram

CruzPro RP-60 Information:
	CruzPro RP60 Manual
