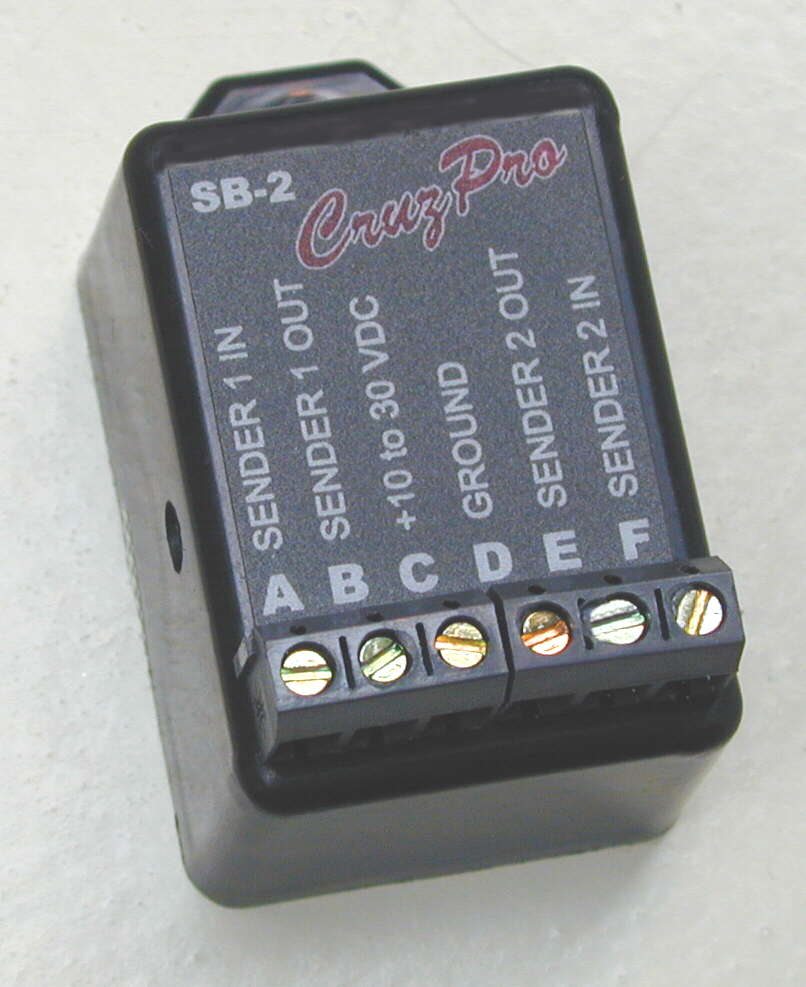

CruzPro SB2 Dual Sender Buffer

CruzPro SB2 Dual Sender Buffer allows a CruzPro gauge (FU30/FU60, TL25/TL55, OP30/OP60, etc.) and one existing analog gauge to share a single station 10-180 ohm or 240 -33 ohm sender.

The SB2 Dual Sender Buffer Makes adding a digital gauge to an existing analog set-up very easy. One SB-2 will buffer two separate senders (e.g. an oil pressure and water temperature sender, etc.).

Model# SB-2

SB2 Dual Sender Buffer Specifications:

Supply Voltage:

• 10.5 to 33.0 VDC 0.005 amps max

Operating Temperature:

• 0 to 50 deg Celsius ( 32 to 122 deg Fahrenheit)

Size:

• 50 x 35 x 30 mm (2 x 1.4 x 1.2 inch)

Adjustments:

• Two screwdriver adjustments. One adjustment for each of the two senders to make your analog gauge read correctly.
• Note: While the CruzPro digital gauge will still work at its optimal accuracy, the sender buffer does not improve the accuracy of your analog gauge.

SB2 Dual Sender Buffer Connection Diagram

CruzPro SB2 Information:
	CruzPro SB2 Manual
