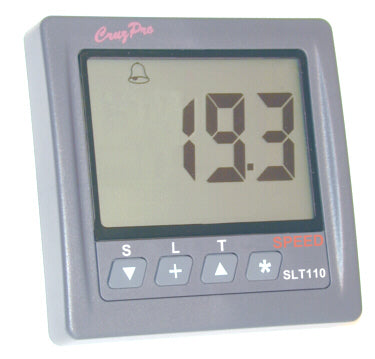

CruzPro SLT110 Digital Speed Temperature Log

CruzPro SLT110 Digital Speed Temperature Log makes accurate digital instrumentation available for boat speed, distance traveled, water temperature, elapsed time. The SLT-110 also provides a race timer that can be pre-set to two different (pre-programmable) values.

The SLT110 deep sounder displays speed and average speed up to 50.0 Knots (58 M.P.H.) in tenths, very accurate water temperature in degrees F or C in tenths, trip log to 999.9 miles, permanent log to 9,999 miles and elapsed time in Minutes/Seconds and Hours/Minutes. A race timer can be started with one of two pre-settable start times.

Model# SLT-110

CruzPro SLT110 Specifications:

Operating Voltage:

• 9.5 - 33.0 VDC

Current Drain:

• 0.037 amps nominal

Display:

• Large 4 digit LCD, 5 levels of backlighting with external backlight on/off control

Data:

• Speed - 0.0 to 50.0 knots/mph/kph
• Average Speed - 0.0 to 50.0 knots/kph/mph
• Trip Log - 0.0 to 999.9 miles/km/n. miles
• Total Log - 0 - 9999 miles/km/n miles
• Temp. 32.0 to 90.0 deg. F (0.0 to 32.0 C)
• Race Timer - Two separate programmable start times (1-99 minutes)
• Elapsed Time - 59Min/59 Sec. in seconds then up to 59Hrs/59Minutes in minutes.

Data Output:

• NMEA 0183 serial 4800 BAUD, $VWVHW, $VWMTW, $VWVLW

Keel Offset:

• Adjustable -20.0 to +20.0 feet in tenths

Alarms:

• Built-in 85 dB audible alarm

Size:

• 4.3" x 4.3" (110m x 110mm) 2-1/2" min. depth, 3-1/2" max depth(See case drawing)

Mounting:

• 2-1/8" (54mm) round hole

CruzPro SLT110 Connection Diagram

CruzPro SLT-110 Information:
	CruzPro SLT110 Manual
