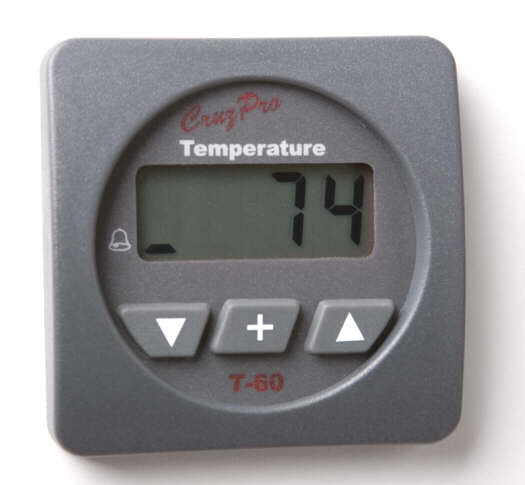

CruzPro T60 Digital Water Temperature Gauge

CruzPro T60 Digital Water Temperature Gauge displays engine oil or water temperature in degrees F or C.

The T-60 has built-in calibration curves for most popular temperature senders manufactured by VDO, Teleflex, Faria, Stewart-Warner and others (sender not provided).

When activated, the built-in 85 dB alarm will sound and the display will flash. The T60 alarms can be enabled or disabled with a single key press.

Also, the CruzPro T60Digital Water Temperature Gauge draws only 0.017 amps and 5 levels of backlight (including OFF) can be selected from the front panel and is saved to non-volatile memory.

Model#:

T-60R Round

T-60S Square

T60 Digital Water Gauge Specifications:

Supply Voltage:

• 9.5 - 33.0 VDC

Current Drain:

• 0.018 amps nominal

Display:

• 4 digit LCD, 5 levels of backlighting

Data:

• Temperature 32 to 300 degrees F (0 to 150 deg C) +/- 0.5 deg F

Inputs:

• Built-in calibration curves for all popular senders

Data Output:

• NMEA 0183 serial 4800 BAUD

Alarms:

• Built-in 85 dB audible alarm. Settable high and low temperature alarms.If NMEA 0183 serial data is not required, this output terminal may ba user programmed as an external alarm output.

Size:

• 2.5" dia X 4.1" deep (61mm x 104mm)

Mounting:

• 2-1/8" (55mm) round hole

T60 Digital Water Gauge Connection Diagram

CruzPro T60 Information:
	CruzPro T60 Manual
