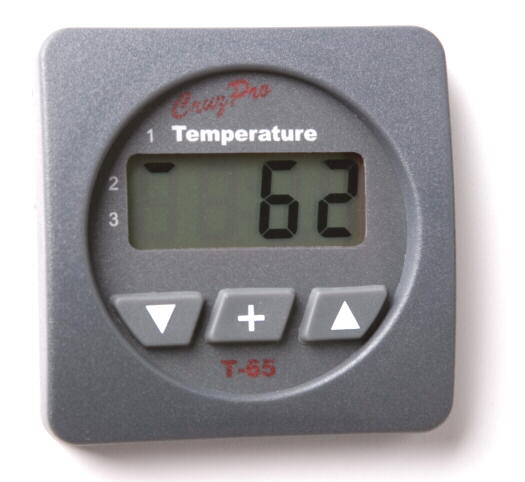

CruzPro T65 Digital-3 Area Temperature Display

CruzPro T65 Digital Temperature Display continuously monitors three separate sensors and displays temperature from -20 deg F (-29 deg C) to +140 deg F. (+60 deg C).

The T-65 comes factory calibrated but can be user calibrated in the field for each individual sensor for spot-on accuracy. All set-up and calibration constants are saved to non-volatile memory. The T65 uses standard 10K NTC thermister temperature sensors (the type most often used in speed/temperature and depth/temperature transducers).

Bronze thru-hull, plastic transom mount and zinc plated bolt-on temperature transducers are available separately

Model#

T-65R Round

T-65S Square

CruzPro T65 Specifications:

Operating Voltage:

• 9.5 - 33.0 VDC

Current Drain:

• 0.035 amps nominal

Display:

• Large 4 digit LCD, 5 levels of backlighting with external backlight on/off control

Data:

• 200 NMEA 0183 sentences built-in (see list below)
• Flash memory for ten new sentences
• Reprogrammable 1 million times
• 4 separate input channels
• Auto search mode scans all 4 channels.

Data Output:

• NMEA 0183 serial 4800 BAUD, $VWVHW, $VWMTW, $VWVLW

Size:

• 4.3" x 4.3” x 3.5” deep (110 x 110 x 89 mm).

Mounting:

• 2-1/8" (54mm) round hole

CruzPro T65 Connection Diagram

CruzPro T-65 Information:
	CruzPro T65 Manual
