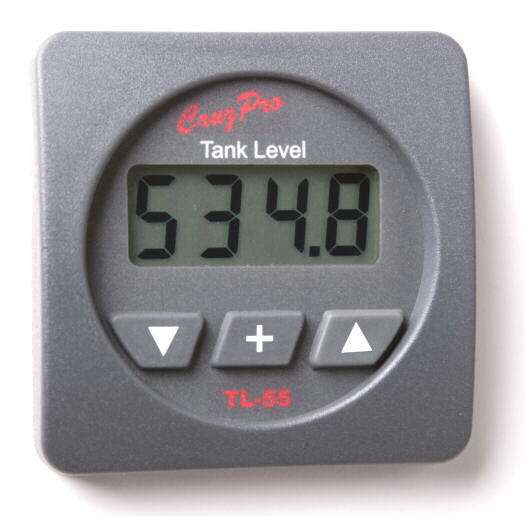

CruzPro TL55 Digital Tank Level Gauge

CruzPro TL55 Digital Tank Level Gauge and Alarm/w Transfer Pump control provides a digital display for tank level. Level can be displayed in liters/gallons or percent (0-100%) up to 999 and as a percentage (0-100%) up to 6500 liters/gallons.

The TL55 Digital Tank Level Gauge has been pre-programmed to work with all known resistive type level senders with 0-30, 0-70, 0-90, 10-73, 10-180, 33-240, 40-250 ohm (and their revere) outputs made by VDO, Teleflex, Mercury, GM, Stewart-Warner, Centroid, Aero-Tec and others and works with both American and European style senders (senders available seperately).

Model#

TL-55R Round

TL-55S Square

TL55 Digital Tank Level Gauge Specifications:

Operating Voltage:

• 9.5 - 33.0 VDC

Current Drain:

• 0.018 amps nominal

Data:

• Tank level display in Liters or Gallons or as a percentage (0-100%)

External Outputs/Alarms:

• Output screw terminal user programmable for choice of:
• NMEA 0183 serial
• External Alarm Output
• Day tank fuel transfer pump control

Inputs:

• Tank Level Senders:
• All popular American and/or European resisitive type fuel level senders with 0-30, 0-70, 0-90, 10-73, 10-180, 33-240, 40-250 ohm (and their reverse) such as GM, VDO, Teleflex, Faria, Centroid, Aerotech, Stewart-Warner, etc. 0 to 5V and 4-20 mA versions are available as a special order item.

Display:

• 4 digit LCD, 5 levels of backlighting

Data Output:

• NMEA 0183 serial 4800 BAUD ($IIXDR sentence).

Alarms:

• Built-in 85 dB audible alarm. Independent settable low and high level alarms.

Fuel Transfer Pump Control:

• Programmable lower fuel level limit to turn ON a fuel transfer pump.
• Programmable upper fuel level limit to turn OFF the fuel transfer pump.

External Alarm Output:

• The NMEA 0183 data output terminal may be programmed as an external alarm output or transfer pump control

Size:

• 2.5" dia X 4.1" deep (61mm x 104mm)

Mounting:

• 2-1/8" (55mm) round hole
