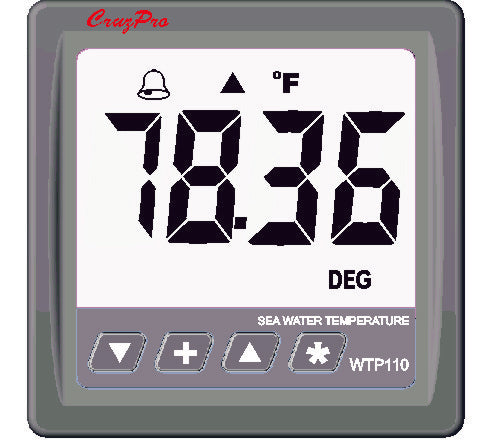

CruzPro WTP110 Precision Sea Water Temperature Gauge

CruzPro WTP110 Precision Sea Water Temperature Gauge provides accurate sea water temperature to 0.01deg F/C. NMEA 0183 data output and Hi/Lo temperature alarms, trend indicator and Min/Max temp. memory.

The WTP-110 Works with standard 10Kohm thermistor transducers (CruzPro THT-1 thru-hull or TMT-1 transom mount transducers below) or popular 30Kohm Dytek temperature senders.

Model# WTP-110

WTP110 Sea Temp Gauge Specifications:

Operating Voltage:

• 9.5 - 33.0 VDC

Current Drain:

• 0.045 amps nominal (depends on backlight level)

Display:

• 4 digit LCD, red LED backlighting Temperature Trend Arrows Alarm bell 5 levels of backlighting including OFF External backlight ON/OFF control

Trend Indicator:

• User Settable Temperature Trend Sensitivity

Memory:

• Resettable Min. and Max. Temperature Seen Memori

Resolution:

• +/- 0.01 deg F or C (adjustable by user)

Range:

• 32.00 deg F (0.00 deg C) to 99.99 deg F (37.77 deg C)

Sensor:

• Standard 10Kohm or 30Kohm (Dytek) NTC thermister. Bronze and plastic versions available separately (see below).

Data Output:

• NMEA 0183 serial 4800 BAUD, $VWMTW, $IIXDR

Alarms:

• User Settable Hi and Low Temperature Alarms

Size:

• 4.3" x 4.3" (110m x 110mm)

Mounting:

• 2-1/8" (55mm) round hole

CruzPro WTP110 Connection Diagram

CruzPro WTP-110 Information:
	CruzPro WTP110 Manual
