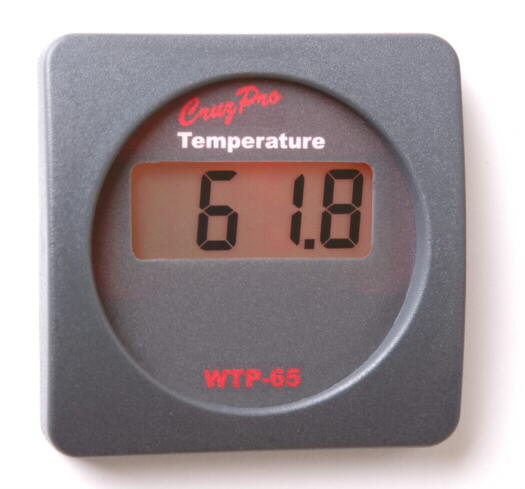

CruzPro WTP65 Digital Sea Water Temperature Gauge

CruzPro WTP65 Precision Sea Water Temperature Gauge provides Accurate sea water temperature to 0.1deg F/C. NMEA 0183 data output.

The WTP-65 Temperature Gauge works with any standard 10Kohm thermistor temperature transducer or select an optional CruzPro THT-1 thru-hull or TMT-1 transom mount transducers.

Model#

WTP-65R Round

WTP-65S Square

WTP65 Sea Temperature Gauge Specifications:

Operating Voltage:

• 9.5 - 33.0 VDC

Current Drain:

• 0.018 amps nominal

Display:

• 4 digit LCD, red LED backlighting

Accuracy:

• +/- 0.1 deg F or C (adjustable by user)

Range:

• 32.0 deg F (0.0 deg C) to 90.0 deg F (32.0 deg C)

Sensor:

• Standard 10Kohm NTC thermister. Bronze and plastic versions available separately.

Data Output:

• NMEA 0183 serial 4800 BAUD, $VWMTW

Size:

• 2.5" dia X 4.1" deep (61mm x 104mm)

Mounting:

• 2-1/8" (55mm) round hole

CruzPro WTP65 Gauge Connection Diagram

CruzPro WTP-65 Information:
	CruzPro WTP65 Manual
