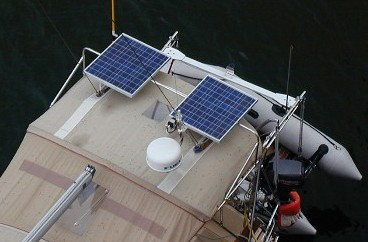

Dual 50W Top of Bimini System

These kits include the following hardware for 1" tubing. (7/8" available only as Special Order)

• 2 solar panels with Cross Kits for each panel
• Solar Boost SB2512i MPPT (25amp) solar charge controller
• Solar Boost IPN Remote that displays current & voltage
• 30 feet of high quality #10-2 round tinned boat wire,
• watertight cable outlet,
• 316 SS tubing used for bracing,(2) 4', (2) 3' and (2) 2' lengths
• qty 10 - 1" eye ends,
• qty 8 - 1" top slide with bolt,
• qty 2 - jawed rail clamps
• qty 2 -90 degree and qty 2 - 60 degree tees,
• Allen wrench and Locktite
• Wire connectors and cable ties
• In-Line 30A fuse� with spare fuse and fuse holder
• Complete and detailed instructions to assemble and wire the system for a sturdy and trouble-free installation.

Tools needed: Screw driver, hack saw, tape measure, drill and bits.

e Marine kits provide all the hardware shown except for the bar across the top. That bar is best acquired locally to save significant shipping cost. The directions provided will guide you in making the proper measurements for the bar (2 bars required on the 135W kit)

2 Kyocera KCM50 solar panels provides approximately 35 amp hours a day.

e Marine includes rubber corner proctectors for all solar panels sold in our kits. These protectors remove the metal corners and sharp edges so you don't have to worry about injury or sail damage.
