e10 Cnt Panel with PEM Meter 12V/50A
Discontinued
ELE51373A
This product has been discontinued. We do not expect it to become available again.
Contact us to find a replacement.

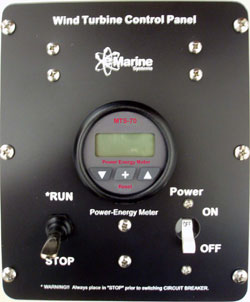

ce10 Control Panel
Wind Turbine Control Panel 12V, 50A
The e10 Wind Turbine Control Panel It is pre-engineered to make wiring the wind turbine easy - just attach two wires from your battery and two wires from the turbine to the large clearly labeled terminals. It could not be simpler. The flush mount panel includes a pre-wired "Stop / Run Switch" with noise suppressors, Digital Power-Energy Meter (displays Voltage, Current and Energy production) and Circuit Breaker. The panel comes complete with instructions and is pre-calibrated and ready to use.
Panel Mount Outside Dimensions: 7.44"L x 6.25" H x 3.5"D (Mounts using six #10 screws.)
Panel Mount Cutout Hole: 6.1" L x 4.75" H
Enclosure Dimensions: 7"W x 9"L x 5"D
| More detailed information: | |
 |
e10 / e20 Cutout Template |
