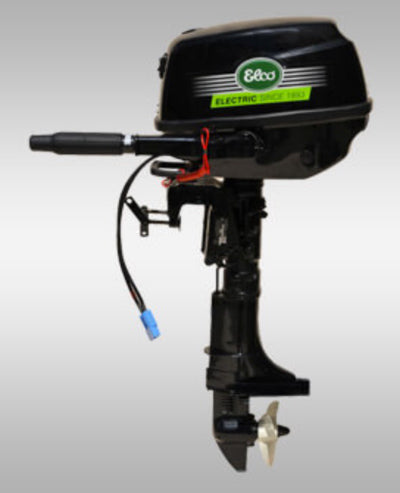

Elco 9.9HP 48V 4.56kW Electric Outboard EP-9.9
Questions about compatibility? Call us for help.
Ships in 1-2 business days
Carrier delivery times and cost shown at checkout.
Couldn't load pickup availability
Elco 9.9HP 48V Electric Outboard EP-9.9 produces zero emissions and offers a multitude of safety precautions such as over-speed protection, overload protection, temperature protection, over-voltage and over-current protection.
How much battery do you need to operate this motor? Please call and we can put together a battery bank that will meet your cruising needs. This is the hard choice as there are so many different types of battery topologies, cost and performance concerns it is often difficult to make a decision. Please allow us to help.
Elco EP-9.9 Features
- Zero emissions
- Smooth running with consistent power throughout the speed range
- Low noise compared to gas motors
- Equipped with emergency stop switch
- LCD display for easy-reading of: fault code, power consumption, rotation rate, forward or reverse, voltage, current, and more (optional)
- Hydraulic tilt (optional)
Elco EP-9.9 Specs:
| Horsepower Rating |
20 h.p. |
| Kilowatts Rating (Continuous Output) |
4560 watts |
| Voltage |
48 vdc |
| Maximum Current |
95 amps DC |
| Motor |
Brushless PMAC |
| Static Thrust |
130 lbs |
| Cooling System |
Water cooled |
| Throttle System |
Remote of Tiller option |
| Throttle |
Side mount, 16' length |
| Optional Remote Cable |
6' |
| Weight |
65 lbs |
| Short Shaft Transom Height |
17.15" |
| Short Shaft Overall |
41“ x 11” x 18.5“ |
| Long Shaft Transom Height |
22.15" |
| Short Shaft Transom Height |
46“ x 11” x 18.5“ |
| Lower Unit Gear Ratio |
2.08 : 1 (27/13) |
| Gear Oil Capacity | 8.5 oz |
| Trim and/or Tilt | Manual |
| Propeller | 3-7 1/2 x 7 |
| Elco EP-9.9 Information: | |
|
ELCO EP-9.9 Specsheet |
Please note: Due to the way this item ships it is impossible to calculate shipping online.
When ordering this item the shipping added to your total is an estimate only. If you order this item through our web site we will contact you to arrange for the adjustment (if any) to your shipping cost.
We offer several complete easy to install solar recharging kits to help in recharging your battery after use.
