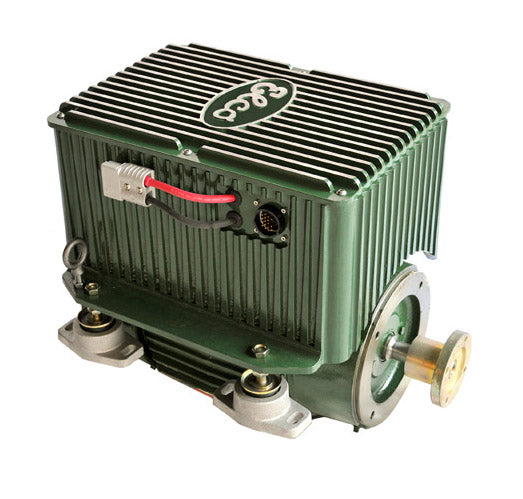

Elco EP-20 20hp 72Vdc 1470Ah Electric Motor
Questions about compatibility? Call us for help.
Ships in 1-2 business days
Carrier delivery times and cost shown at checkout.
Couldn't load pickup availability
Elco EP System - Electric Boat Propulsion at Its Finest
The Elco Electric Propulsion System is well engineered using advanced technologies for reliable and outstanding performance. All of Elco's products are built in the USA.
Elco Electric Motor: Cool, Quiet & Powerful
The entire propulsion system, excluding instrument panel and batteries, is contained in a water resistant cast aluminum finned housing that contains all of the electronics, AC motor, and safety devices. The system is mounted directly in place of a typical marine diesel or gas engine.
Whether on the sound, around the bay, along the lake, or on the river, it is highly valuable to protect our waters. The Elco Electric Propulsion System is a highly efficient and extremely durable alternative to fossil fuel options.
MOTOR SPECIFICATIONS (EP-2000)
| Boat size ranges (see note 1 below) |
25' - 40' |
| Horsepower diesel equivalency | 20 h.p. |
| Suggested horsepower replacement range |
15 - 25 h.p. |
| Miles per gallon equivalency |
50 mpg |
| Length | 21" |
| Width | 16.22" |
| Height | 18.32" |
| Weight | 260 lbs |
Note 1: In selecting the correct size electric motor, in areas with strong tides and currents, choose the next larger size motor. If your boat is heavy for its length, size up too. When in doubt, give us a call.
ELECTRIC SYSTEM
| Cruising speed 60%-80% of hull speed |
5.5 - 7 knots |
| Cruising time 60%-80% of hull speed | 6 - 3 hours |
| Cruising range 60%-80% of hull speed | 34 - 19 nm |
| Recharging time for standard charger (shore power-50% depth of discharge) |
4 - 5 hours |
| Recharging time for quick charger (shore power-50% depth of discharge) |
3 - 4 hours |
| Number of 12 volt 8-D batteries (245 Ah) |
6 batteries |
| Battery bank voltage in total |
72 Vdc |
| Amps (maximum) |
114 amps |
| Kilowatts (max full power from batteries) |
8.2 kW |
| Number of chargers required |
1 charger |
| Charger | Elcon PFC 2000 |
| Quick charger (optional) |
Elcon PFC 3000 |
Every Elco Motor System Package includes:
- Elco Motor
- Battery Charger
- E-Gauge IV
- Throttle
- Ignition key & switch
- Power on light
- Power boost button
- Controller/Inverter
- 15' Pre-wired harness
- Installation Manual
Please note: Due to the way this item ships it is impossible to calculate shipping online.
When ordering this item the shipping added to your total is an estimate only. If you order this item through our web site we will contact you to arrange for the adjustment (if any) to your shipping cost.
