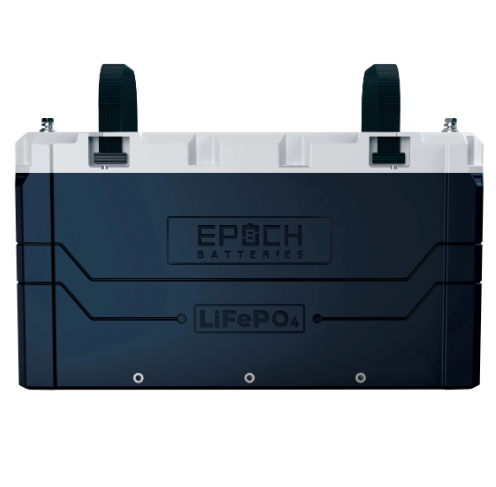

Epoch 460A-Hr 12V LiFePO Victron Comms Battery

• LiFePO4 Chemistry
• Group 8D Size (20.9" x 8.7" x 12.1") L x W x H
• 460Ah Capacity
• 300A Max Continuous Discharge (500A 30s Discharge)
• 230A Max Continuous Charge (300A 10s Charge)
• IP67 Rated, Dust and WATERPROOF
• HEATED - Internal heating for below 0C charging
• BLUETOOTH - iOS and Android Apps
• CANBUS Communication allows BMS to communicate directly with Victron OS
• Mountable ON/OFF Switch
• Mountable Battery gauge
• Optional mounting brackets
• Built-in Smart Battery Management System (BMS)
• Over charge and over discharge protection
• Over current and short circuit protection
• High & low temperature disconnects
• 3500+ Cycle life & Maintenance-free
• 11 Year Manufacturer Warranty

Weights & Dimensions

Weight: 97 (LBS)

Dimensions: 20.9 x 12.1 x 8.7 (inches)

Specifications

CONFIGURATION

Cell Configuration: 4S2P

Chemistry: LiFePO4

CURRENT

Ah Capacity: 460Ah

Max Continuous Discharge Amps: 300A

Max Charge Current Amps: 230A

Max Discharge Peak Current Amps: 500A (30 Seconds) , 1300A (1 Second)

Series | Parallel: Max (4) in Series OR Max (4) in Parallel - 4S1P or 1S4P

VOLTAGE

Voltage: 12.8V

Max Charge Voltage: 14.6V

Operating Voltage Range: 10.0 - 14.6V
