ETM20 Engine/Exhaust Temperature Monitor
Regular price
$115.00
Sale price
$115.00
Regular price
$0.00
Unit price
per
MTS02050
Questions about compatibility? Call us for help.
Get an additional off
Add the item to cart to apply the discount
Ships in 1-2 business days
Carrier delivery times and cost shown at checkout.
Couldn't load pickup availability

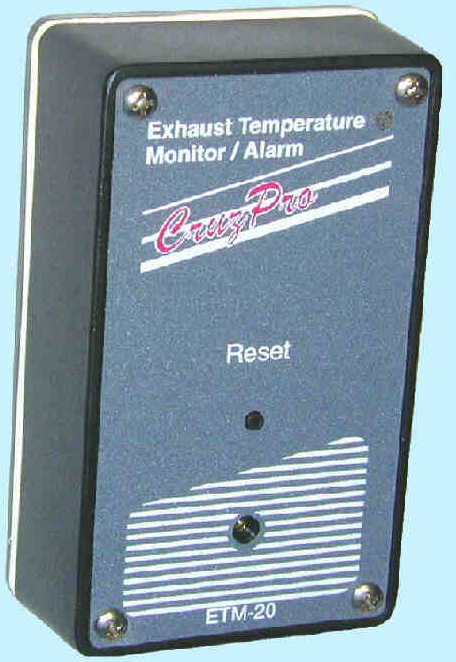

The ETM-20 Engine/Exhaust Temperature Monitor and Alarm uses modern electronics and a reliable solid state temperature sensor to accurately monitor the temperature at any point it is attached. The alarm is factory pre-set at 90 degrees C (194 deg F) but can be easily adjusted with a small screwdriver over a range of 50 deg C to 125 deg C (122 to 257 deg F). When the ETM-20 detects an over-temperature condition it sounds a built-in 85 dB audible alarm.
The alarm will continue to sound for the duration of the out-of-limit condition, or until the reset button is pressed. If the alarm is silenced by the use of the reset button, the ETM-20 will automatically arm itself again as soon as the temperature falls below the alarm set point.
The ETM-20 draws only 0.012 amps at 12 VDC and can be connected to an external alarm (LA-20) to provide 105 dB of volume, if desired.
Specifications
| Operating Voltage: | 9.5 to 18 VDC, 0.012 amps nominal |
| Temperature Alarm Range: | 50 to 125 deg C (122 to 257 deg Fahrenheit) |
| Instrument Operating temperature: | 0 to 50 deg Celsius ( 32 to 122 deg Fahrenheit) |
| Size: | 100 x 60 x 30 mm (4 x 2.4 x 1.2 inch) |
| Alarms: | Built-in 85 dB audible alarm. Can be connected to optional External 105 dB Loud Alarm (LA-20) |
| Sensor: | Solid state sensor solid potted with polyester or epoxy resin. Four meters (13 feet) of cable provided |
| Accuracy: | Repeatable accuracy is +/- 1.5 deg. C (+/- 2.7 deg. F) |
| More detailed information: | |
 |
Operator's Manual |
