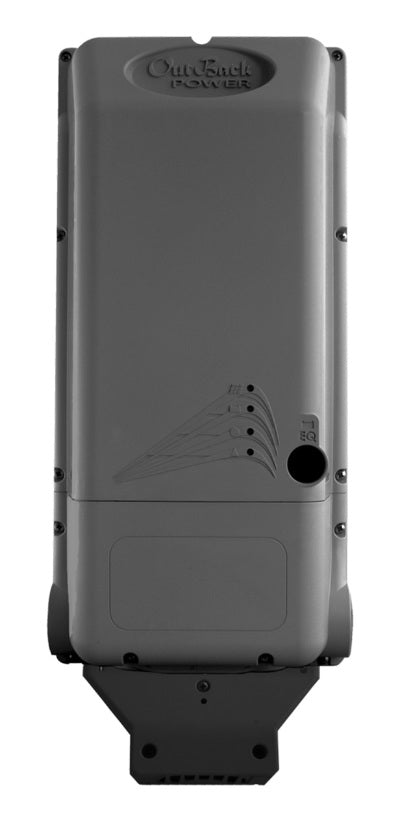

Flexmax FM100 MPPT Charge Controller 100 Amps
Regular price
$1,678.00
Sale price
$1,678.00
Regular price
$0.00
Unit price
per
CCO55300
Questions about compatibility? Call us for help.
Get an additional off
Add the item to cart to apply the discount
Ships in 5-7 business days
This item ships directly from supplier. Carrier delivery times and cost shown at checkout.
Couldn't load pickup availability
Flexmax 100 MPPT Charge Controller offers an efficient, safe, multi-stage recharging process that prolongs battery life and assures peak performance from a PV array of up to 300 open-circuit volts
The FLEXmax 100 charge controller uses continuous Maximum Power Point Tracking (MPPT). This function continuously seeks out the maximum power av ailable from a PV array and harvests it. This power is used to recharge the batteries . See page 66 for a description of MPPT
FLEXmax 100 MPPT Specs:
| Nominal Battery System Voltage | 24VDC / 36VDC / 48VDC |
| Maximum Output Current | 100A |
| Standby Power Consumption | ~2.5W |
| Power Conversion Efficiency |
24V: 96% 48V: 97% |
| Charging Regulation | Three-stage |
| Equalization Charging | Programmable start time, voltage set point and duration, automatic termination when completed |
| Battery Temperature Compensation | Adjustable from 2mV/cell/°C to 6mV/cell/°C |
| Voltage Step-Down Capability | Down convert from any acceptable array voltage to any battery voltage (example: 72VDC array to 24VDC battery) |
| Programmable Auxilary Control Output | 12VDC output signal which can be programmed for different control applications (maximum of 0.25ADC) |
| Remote Display and Controller | MATE3 compatible |
| Operating Temperature Range | Ambient, -25°C to 60°C (-13°F to 140°F), output power reduced above 25°C |
| Weight |
Unit: 18.3 / 8.3 Shipping: 22 / 10 |
| Dimensions (H x W x D) |
Unit: 22 x 8.8 x 6 / 55.9 x 22.4 x 15.2 Shipping: 25.5 x 12 x 10 / 64.8 x 30.5 x 25.4 |
| Options | Remote Temperature Sensor (RTS), HUB4, HUB10.3, MATE3s |
| Certifications | UL 1741, CSA C22.2 No. 107.1, IEC 62109-1 |
| FLEXmax 100 information: | |
|
Spec Sheet |
|
|
Owner's Manual |
|
|
Quick Start Guide |
